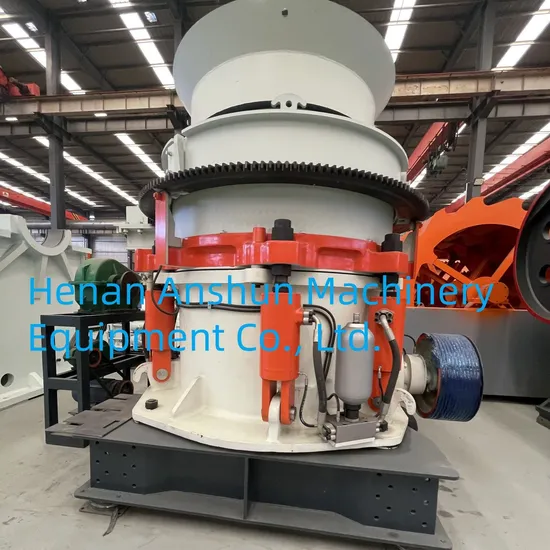

Stone Multi-Cylinder Hydraulic Quartz Rock Granite Mining Cone Crusher Machine for Sale

Product Description

Product Introduction
Multi-cylinder cone crusher is a typical crushing equipment for medium and fine crushing of hard materials. It is mainly used in the second and third stage crushing of metal mines and construction sand and stone processing. Multi-cylinder hydraulic cone crusher uses hydraulic devices for its insurance, adjustment and locking, so it also has the advantages of convenient adjustment of discharge port, small overload coefficient when passing non-crushed objects, and easy removal of non-crushed objects blocked in the crushing chamber.
Product Advantages1. Fixed spindle, the equipment has strong carrying capacity, more compact structure, small size and high efficiency.
2. Designed by adopting the principle of inter-granular lamination. Utilizing the mutual extrusion of materials, the crushing efficiency and the proportion of fine materials are significantly improved, and the needle and flake materials are greatly reduced and the steel consumption of wearing parts is reduced.
3. Advanced bearing design, using tin bronze bushing sliding bearing design. Compared with rolling bearings, the equipment can still maintain ultra-high load capacity in high dust and high impact environments, and has low production costs.
4. A temperature sensor is installed at the oil return position of the horizontal axis to accurately detect the oil temperature and ensure stable operation of the equipment; the transmission system uses spiral bevel gears to ensure reliable and stable transmission.
5. While the cone wall is thickened, the liner fixing method is improved, eliminating the need for glue filling, making replacement very convenient and fast, reducing maintenance costs.
6. Integrated hydraulic lubrication and unique thin oil lubrication system design greatly extend the service life of the equipment. High-performance non-contact labyrinth seals are more conducive to ensuring the cleanliness of lubricating oil.
7. The oil circuit of the safety cylinder adopts large-diameter oil pipes and large-capacity accumulators, which have better buffering performance, faster response, and safer equipment.
8. The standard floating installation base makes the installation simple, labor-saving and time-saving, with reduced foundation requirements and low user investment.
Working Principle
The motor drives the eccentric sleeve to rotate through the V-belt, transmission shaft and bevel gear pair, and the moving cone performs a pendulum motion under the action of the eccentric sleeve. The moving cone and the fixed cone sometimes approach and sometimes deviate, squeezing, rolling and crushing the materials in the crushing chamber 360 degrees, and the crushed materials are discharged from the bottom.
HPT multi-cylinder cone crusher technical parameters

Model	Cavity	Open Side Feeding Size (mm)	Closed Side Feeding Size (mm)	Minimum Discharge Port Size (mm)	Capacity (t/h)	Max Installed Power (kw)
HPT100	C1 (Extra coarse)	175	140	19	450-100	90
	C2 (Coarse)	125	105	13
	M (Medium)	100	70	10
	F1 (Fine)	71	50	9
	F2 (Extra fine)	33	20	6
HPT200	C2 (Coarse)	235	190	19	65-250	160
	M (Medium)	171	120	16
	F1 (Fine)	150	95	13
	F2 (Extra fine)	116	70	8
HPT300	C1 (Extra coarse)	265	230	25	85-440	220
	C2 (Coarse)	240	210	20
	M (Medium)	190	150	15
	F1 (Fine)	145	105	11
	F2 (Extra fine)	120	80	8
HPT400	C1 (Extra coarse)	360	290	30	135-625	315
	C2 (Coarse)	310	250	25
	M (Medium)	260	196	20
	F1 (Fine)	182	110	13
	F2 (Extra fine)	135	90	10
HPT500	C1 (Extra coarse)	370	330	38	200-790	400
	C2 (Coarse)	320	290	28
	M (Medium)	245	210	22
	F1 (Fine)	180	130	13
	F2 (Extra fine)	150	95	10
HPT800	C1 (Extra coarse)	450	352	38	265-1200	630
	C2 (Coarse)	373	298	32
	M (Medium)	340	275	25
	F1 (Fine)	280	230	16
	F2 (Extra fins)	235	150	10

Production capacity

Outlet model	6mm	8mm	10mm	13mm	16mm	19mm	22mm	25mm	32mm	38mm	45mm	51mm
HPT100	45-55	50-60	55-70	60-80	70-90	75-95	80-100	90-115	100-150
HPT200		65-85	90-125	110-115	135-180	150-195	160-210	170-225	190-235	210-250
HPT300		85-120	115-140	150-185	180-220	200-240	220-260	235-290	250-320	300-380	350-440
HPT400			135-180	190-230	225-276	250-320	270-350	295-380	290-375	355-490	410-565	460-625
HPT500			200-250	230-290	280-350	320-400	345-430	370-460	405-535	445-605	510-700	580-790
HPT800			265-340	320-425	385-510	425-540	470-605	495-740	545-800	600-945	690-1050	785-1200

Applicable materials
medium and fine crushing of hard and medium hard rocks such as quartz, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, bluestone, etc.
Company Profile
Henan Anshun Machinery Equipment Co., Ltd. is a modern enterprise engaged in the research and development, production, sales and service of equipment in the fields of mining crushing, building crushing, tower sand making, etc. It is the first unit to pass the ISO9001 quality certification system, the EU CE certification unit, and an enterprise with the right to import and export. Over the years, the company's products have been sold well throughout the country and exported to Vietnam, North Korea, Central Africa and the Middle East countries and regions. The company's after-sales service team is spread all over the world. The complete after-sales service management system has been recognized and praised by the industry, and is well-known at home and abroad, becoming a shining pearl in my country's mining machinery manufacturing industry.Packaging & Shipping
Certifications
FAQ
Support:We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.After-sales service support :After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.Technological support :ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.

---
