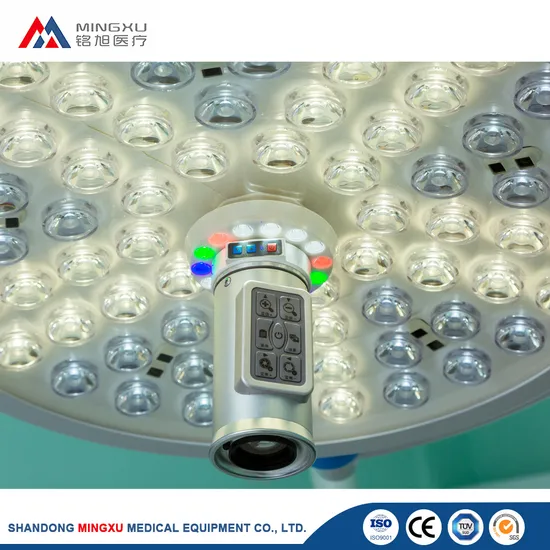

Operating Room Equipment Lamp Surgical LED Examination Operation Medical Supply Ot Light

Product Description

Product Specifications

Lamp head model	MXLED 700	MXLED500
Number of lamp beads	84	59
Center Illuminance(LUX)	130000-160000 (10 levels adjustable)	100000-130000 (10 levels adjustable)
Color Temperature(K)	4300±500 (6 levels adjustable)	4300±500 (6 levels adjustable)
Color Rendering Index (Ra)	≥95%	≥95%
Spot diameter (mm)	100-300	100-300
Spot distribution diameter(mm)	80-150	80-150
Light beam depth (mm)	≥1200	≥1200
Irradiance(W/m2)	≤400	≤400
Head temperature rise(ºC)	≤1	≤1
Temperature rise in the surgical working area	≤2	≤2
Operating radius(mm)	≥2200	≥2200
Working radius(mm)	600-1800	600-1800
Supply voltage	220V±22V 50HZ±1HZ	220V±22V 50HZ±1HZ
Input Power	150VA	150VA
Average life of lamp(h)	≥60000	≥60000
Lamp power	1W	1W
Optimum installation height(mm)	2800-3000	2800-3000

Product Configuration List

Number	Name	Quantity	Remark
1	Base	1
2	Cross arm	2
3	340° Balance Arm	2
4	Lamp holder	2
5	700 lamp holder lamp beads	84
	500 lamp holder lamp beads	59
6	Handle	2	2 extra
7	Hexagon wrench s=3,s=4,s=5,s=6,s=8	1 each
8	Small flat screwdriver	1
9	Phillips screwdriver	1
10	Certificate	1
11	User Manual	1
12	Product warranty card	1

FAQ Q: Are you manufacturer ?
A: Yes,Mingxu Medical is located in Qufu, Shandong Province, with a research and development center of more than 5,000 square meters and a standardized production workshop of more than 20,000 square meters,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ISO13485?
A: Yes,our products are approved by CE,ISO13485
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2.All of the productions are inspected carfully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is5-10 days after receiving the deposit; If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30days,It depends on the quantity of order
Q: What is your Min.order?
A: 1set

---
