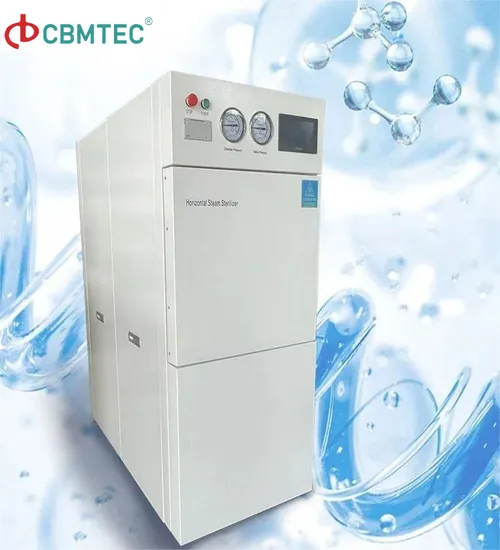

Hospital Instrument Horizontal Steam Sterilizer (square)

Product Description

Product Description
WF Horizontal Steam Sterilizer
Features Horizontal circular inner chamber + jacket structure, safety, heat preservation, and drying function; Disc type embedded gear + Electric lock door structure,safety and reliable; Door seals are pneumatic or self-expanding Equipped with standard equipment verification interface Pipeline system for the optimal design, SUS304 pipeline, clamp structure, quick assembly Control system: HMI man-machine interface, touch screen + microcomputer; FO value and temperature time double guarantee sterilization effect, with perfect sterilization records; With program selection, parameter setting, equipment operation, report processing and traceability Functions; Multiple safety protection(over-temperature, over-pressure protect) Sterilization process: fabric, equipment, liquid, BD, pressure testing, custom defined multiple procedures

Model	(LXWXH)mm Overall Dimensions	(LXWXH)mm Chamher Size	(KG) Stam Corsumption	(KG) Water Consumpion	(KW) Power
WF-150D(S)(M)	950×1120×1760	700×450×480	≤14	≤190	≤2+
WF-200D(S)(M)	1175×1120×1760	925×450×480	≤16	≤190	≤2+
WF-250D(S)(M)	1030×1300×1900	780×600×600	≤18	≤200	≤2+
WF-360D(S)(M)	1250×1300×1900	1000×600×600	≤25	≤200	≤2+
WF-600D(S)(M)	1440×1310×1900	1190×610×910	≤30	≤210	≤3+3
WF-800D(S)(M)	1700×1310×1900	1450×610×910	≤35	≤220	≤3.5+4
WF-1000D(S)(M)	1500×1440×1950	1250×680×1180	≤42	≤200	≤3.5
WF-1200D(S)(M	1700×1440×1950	1450×680×1180	≤50	≤200	≤4.5
WF-1500D(S)(M)	2100×1440×1950	1850×680×1180	≤60	≤200	≤4.5

1. For example≤2+, the first 2 is the power of the system, and the is the power of the built-in steam generator. But the steam generator is optional.
2. Model WF- 150D(S)(M)~WF-360D(S)(M)is equipped with sterilization basket, and the WF-600D(S)(M)~WF- 1500D(S)(M) is equipped with sterilization car and loading car;
3. Model "D"means single door,"S" means double,"M"means pulsation vacuum.
WY Horizontal Steam Sterilizer
Model&Parameter(Without Pulse Vacuum)

Model	(LXWXH)mm Overall Dimensions	(φXL)mm Chamher Size	(KG Steam Consumpton	(KG Water Consumption	(KW) Power	(KG) Net Weigh
WY-100D	1160×650×1680	φ420×750	≤10	≤30	≤2+9	350
WY-150D	1290×690×1680	φ472×880	≤12	≤30	≤2+	400
WY-200D	1560×690×1680	φ472×1150	≤13	≤30	≤2+	450
WY-300D	1430×850×1760	φ620×995	≤18	≤40	≤2+	510
WY-400D	1755×850×1760	φ620×1320	≤22	≤40	≤2+	650

Model&Parameter(With Pulse Vacuum)

Model	(LXWXH)mm Overall Dimensions	(φ×L)mm Chamber Size	(KG) Steam Consumpion Water Consumption		(KW) Power	KG Mt WiephtSirngeDal:Dor
WY-100D(S)M	1160×650×1680	φ420×750	≤11	≤190	≤2+	410/450
WY-150D(S)M	1290×690×1680	φ472×880	≤13	≤190	≤2+	450/500
WY-200D(S)M	1560×690×1680	φ472×1150	≤15	≤190	≤2+	500/540
WY-300D(S)M	1430×850×1760	φ620×995	≤20	≤200	≤2+	560/640
WY-400D(S)M	1755×850×1760	φ620×1320	≤25	≤200	≤2+	700/750

STERILIZATION CONTROL PRINCIPLES
Pulsating vacuum sterilizer is strictly designed and manufactured in accord with GMP technical Standard. It has passed ISO9001 quality management qualification standard and ISO13485:2003 Certificate of Quality Management System for Medical Devices.
The relevant data can be saved and printed automatically.
This autoclave is suitable for hospital, scientific research institute and other units to sterilize asepsis clothes, tools, ulture medium and so on,
Packing&Shipping
About Us
Ningbo CBMT Medical Equipment Co., Ltd (hereinafter referred to as "CBMT") is registered at Factory Add: No. 8, Huangninongan,Wuxiao, Kangting Village, Xiwu Street, Fenghua District, Ningbo City, Zhejiang Province. The company will adhere to the concept of quality first, superior service, and still be practical, pragmatic and enterprising, to develop new and far-reaching, bravely "step out" multi-channel multi-channel multi-level business cooperation! We will rely on years of experience in the medical industry and the broad prospects for the development of the industry to be specialized, refined and strong!
Exhibition
Services 1. Support customization based on your special request;2. OEM is available;3. Special LOGO printing is available;5. Shipping within 5-7 days after 100% payment , Fedex, DHL, TNT, EMS, UPS, Etc.
Anyway, should you have any intersts or some more info needed on our surgical lights & allied gas items (gas cylinder valves,gas regulators, medical hospital central oxygen system products), you are really welcome to enquire us anytime!
Key Contact: Ethan Liu (Exp. Mgr)

---
