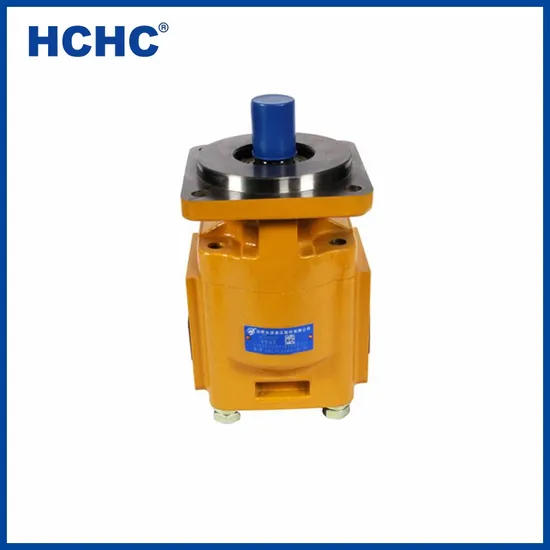

Wheat Combine Hydraulic Parts Retail Construction Machinery Hydraulic Pump Complete Pump Cbgtf

US$130.00-170.00 1 Piece (MOQ)

Basic Info.

Model NO.

Cbgtf

Material

Aluminum

Power Source

Diesel

Weight

Gear Pump

Warranty

1 Year

Product Name

Hydraulic Double Gear Pump

Structure

Gear Pump

Rated Pressure

250 Bar

Maximum Pressure

280 Bar

Minimum Speed

800 Rpm

Rated Speed

1500 Rpm

Maximum Speed

2500 Rpm

Volume Efficiency

90 %

Certificate

ISO9001:2008

Transport Package

1 Piece / Carton

Specification

As drawing

Trademark

HCHC

Origin

Anhui, China

HS Code

8413602220

Production Capacity

8000 Sets Per Month

Product Description

Performance Characteristics:
★ High strength cast iron material housing makes stronger bearing capacity, high working pressure.
★ Technology of patent design ensures that the gear pump with longer service-life and higher reliability.
★ The joining type of inlet/outlet position: flange (F) or thread (L).
★ The type of shaft end: plain key (P), rectangular spline, SAE spline, involute spline.
★ The auto-compensation unit of axial clearance ensures the high volume efficiency.

Model	Nominal Displacement (mL/r)	Pressure (MPa)		Speed (r/min)			Volume Efficiency (≥%)
		Rated	Max.	Min.	Rated	Max.
CBGTF2080-BF1Φ	80	25	28	800	1500	2500	92
CBGTF2063-BF1Φ	63
CBGTF2050-BF1Φ	50
CBGTF2040-BF1Φ	40
CBGTF2032-BF1Φ	32
