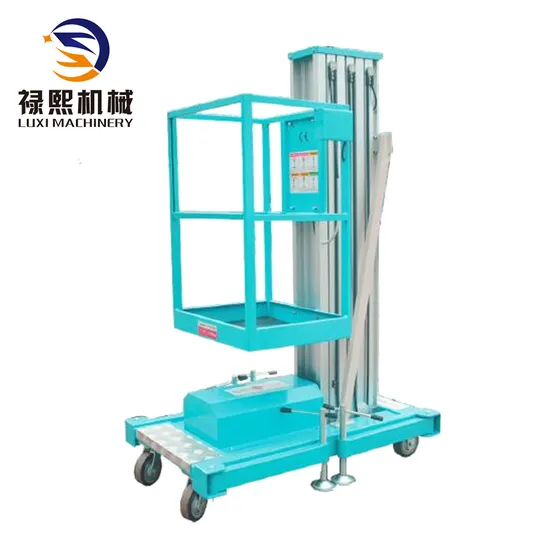

6m Single Mast Aluminum Alloy Aerial Work Platform Vertical Lift with High Efficiency

Product Description

6m Single Mast Aluminum alloy Aerial Work Platform Vertical Lift with High Efficiency
Application: for single passenger
Max height of platform:4m, 6m,8m,9m,10m for option
Features: small footprint, less weight, easily moved, able to access to limited passageway The most ideal equipment for aerial work to replace ladder or rigger, with high efficiency and more security
Advantage: 12 years lift platform manufacturing enterprise integrating R&D, production and sales. Experienced export team World famous brand spare parts Quick responses For after-sale service,we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply 24-hours technical support by email, telephone or other communication online.We could reply to you in 2 hours after received your any questions even on weekend and holidays engineers are available to your company if necessary.

Parameters
Model	GTWY4-100	GTWY6-100	GTWY8-100	GTWY9-100	GTWY10-100	Standard Configuration Power supply: single phase AC(AC220V); Move mode: manual;( default) Driving unit: one unit hydraulic pump, small volume and less noise. Optional Configuration Power supply:Battery DC with charger, suitable for outdoor operation. Move mode: 1,Electric moving device is equipped in case of long distance travel 2,Could be built in carriage of truck 3,Trailer base could be provided in case of outdoor operation Remarks All the Diemensions here is for your reference,The Finished Products are subject to the actual Dimensions. We accept customization.
Safe working load(kg)	150	150	125	125	125
Number of passengers	1	1	1	1	1
Max height of platform(m)	4	6	8	9	10
Max working height(m)	5.7	7.7	9.7	10.7	11.7
Overall length(m)	1.05	1.32	1.32	1.38	1.42
Overall width(m)	0.75	0.8	0.8	0.85	0.85
Overall height(m)	1.65	1.65	1.98	1.98	2.1
Extended outrigger(lxw)(m)	1.76×1.64	1.76×1.63	1.76×1.75	1.98×1.83	1.91×1.81
Size of platform(m)	0.60×0.55	0.60×0.55	0.60×0.55	0.60×0.55	0.60×0.55
Lifting motor
AC(VAC/kw)	220/0.75	220/0.75	220/0.75	220/0.75	220/0.75
DC(option)(VDC/kw)	24/0.8	24/0.8	24/0.8	24/0.8	24/0.8
Accumulator(V/Ah)	2×12/80	2×12/80	2×12/80	2×12/80	2×12/80
Charger(V/A)	24/10	24/10	24/10	24/10	24/10
Wheel
Frontwheel(in)	6	6	6	6	6
Rearwheel(in)	6	6	6	6	6
Overall weight(kg)	185(AC)	260(AC)	300(AC)	326(AC)	350(AC)
	230(DC)	305(DC)	345(DC)	372(DC)	395(DC)

FAQ
1.Q:How about your delivery time?
A: Lead time 5 days for in stock, If need customized, it will take about 15 -30 working days.
2.Q:Why should I buy from you not from other suppliers?
A:We are professional in producing the hydraulic lift equipment for logistics, warehouse, factory and construction using. We are a large-scale lifting platform manufacturing enterprise integrating R&D, production and sales.
3.Q:How long is your product warranty?
A:The product warranty period is 12 months.
6.Q:What should we do if there have quality problems?
A:During warranty period we will provide free spare parts for free.
