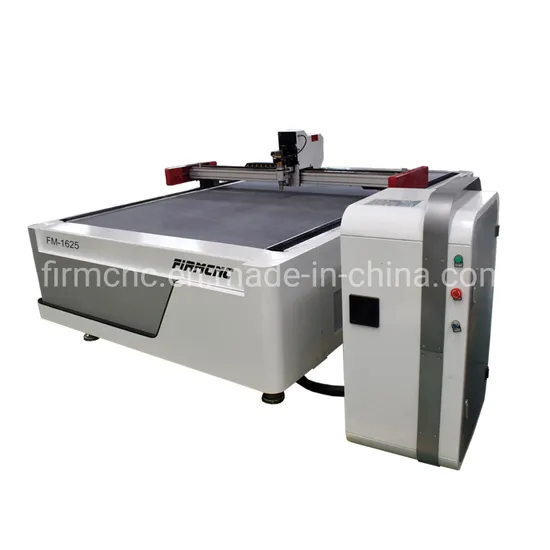

Firmcnc 1625 Oscillating Knife Automatic Fabric Leather Cutting Machine

Product Description

FIRMCNC 1625 Oscillating knife automatic fabric leather cutting machine
Product Description
Features
(1).Cutting function of oscillation tool
It can cut many different materials (such as corrugated paper, cardboard, offset paper, grey board, rubber,honeycomb board, PP,PE,PVC, gasket, leather ,carpet and mat )
(2). Folding function: It can fold corrugated paper, card paper and offset board into perfect folding line.
(3). Function of dotted line: It is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted line.
(4). Location: Location with laser.
(5). Drawing function
It can draw various high precision drawing cutting materials: corrugated board, foam, PVC, styrene, Coroplast, Celtec, magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyl etc.
(6). Punching function: It can punch hole on the material, such as leather,carton, pvc, carpet and mat ,etc.
Technical parameters

Model	FM1625	FM2030	FM2040	Custom made
Working Area	1600*2500mm	2000*3000mm	2000*4000mm	Custom made
Table type	Vacuum work table
Control system	Trocen-TC6828 control system
Transmission system	Helical gear rack for X/Y-axis; Ball screw for Z-axis
Guide rail	Hiwin 25mm linear square guide rail
Motor and driver	Servo motor and driver(Brand )Japan Fuji /Yaskawa/Panasonic
Cutting materials	Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber, cardboard
Translational velocity	800-1300mm/s
Cutting speed	200-1300mm/s(according to different cutting materials)
Cutting thickness	≤70mm(according to different cutting materials)
optional tools	Oscillating knife/mark pen/creasing wheel/punching tool/spindle/CCD system,etc.
Safety device	Using infrared sensors, responsive, safe and reliable.
Repeated accuracy	≤0.1mm
Machine structure	8-10mm thick steel
Working Voltage	380V/3P/50Hz; 220V/50HZ
Vacuum pump	9.0kw vacuum pump with silencer

Machine application
Besides EVA foam, CUTCNC digital cutter machine can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.
Using cnc knife cutting technology, our digital cutter machine has no burning and totally environmently. It's equipped with plotting pen, oscillating cutting tool, creasing tool, and drag knife tool to meet customers' different requirements. The heavy duty drag knife tool is available for special materials of the sign making industry.
Company Information
JINAN FIRMCNC EQUIPMENT CO.,LTD the professional cnc router and laser cutting machine manufacturer, which is located in Jinan city ,China
We started to sell cnc machine in China since 2009 ,and then start our business abroad since 2013 , Our machine sells well in global area, like the North America, Europe, Middle East , etc.
Our machine includes : Woodworking cnc router , Stone engraving machine , Metal mould making machine , 4 axis cnc router , 5 axis cnc router , EPS processing machine , Co2 laser cutting and engraving machine , Fiber laser cutting machine , Laser marking machine , Plasma cutting machine
Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
Our Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges. Customer visit factory
Customers often ask
1.Can we visit your factory?
We do welcome our new and regular friends come here to have a visit. Besides,
We can pick you up at the airport or the train station
2.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.
3.How about your after-sales service?
We offer you 24 hours service phone,skype or MSN.
4.How about your guarantee period?
Two years and during the time,if you have any questions ,we will solve it for free.
5.How to maintenance the CNC Router?
a. First cut the power when maintain the machine. When check work must open the power,need the professional electrician to do this check work.
b. Repair and replacement the parts, please first confirm the specifications of the technical.
c. Regular clean the cooling system.
d. Should always monitor the voltage and electricity grid of the CNC Router.
e. Prevent the dust into the machine.
6. What's your payment term?
30% advance payment and the balance payment should be paid before delivery but after inspection.
If you have any interest pls feel free to contact me, the most suitable machine and best price will be provided asap.

---
