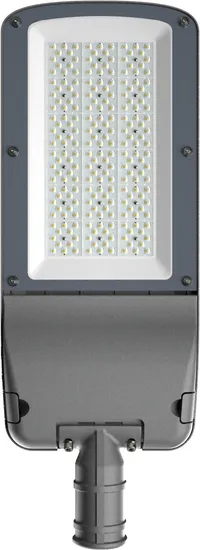

100W 150W 200W 250W Outdoor Lighting Modern Quality with Adjustable Angle Lights LED Street Light

US$10.00-30.00 1 Piece (MOQ)

Basic Info.

Model NO.
YSD-LD
Power
60-100W
Application
Square, Highway, Garden, Parking Lot
IP Rating
IP66
Certification
CCC, CE, CQC, EMC, Energy Star, FCC, FDA, LVD, RoHS, SAA, SASO
Input Voltage
100-240V
With Light Source
With Light Source
LED Chips Brand
Bridgelux
Transport Package
Carton
Specification
Exporting Standard
Trademark
EASTAR
Origin
Yangzhou City, Jiangsu Province
HS Code
9405409000
Production Capacity
10000PCS/Month

Product Description

Product Description
Product Parameters of LED Street Light
Rated Power 50W 100W 150W 200W
Chip Type SMD3030 SMD3030 SMD3030 SMD3030
Chip Qyt 60pcs 120pcs 150pcs 200pcs
Luminous Efficiency 150lm/W
Colour Temp. 3000K/4000K/5000K/5700K/6500K, Optional
Beam Angle TYPE II / TYPE III, Optional
Color Rendering Index Ra>70
Input Voltage AC100~277V, 50~60Hz
Power Factor >0.95
Driver MEANWELL, INVENTRONICS or others, according to customer's requirements
Options for Driver Conventional/0-10V, optional; additional light controller can be installed
Matreial of Housing ADC12 Die-cast aluminum lamp body + PC lens + 304 stainless steel screws
Protection Level IP66/IK08
Lightning Protection 6KV or 10KV
Installation Diameter Ф50mm Ф60mm Ф60mm Ф60mm
Product Size 420*200*70mm 495*215*80mm 540*215*80mm 600*235*80mm
Warranty 5 years
