CNC Milling Machine for Vertical Drilling with 50mm Diameter

Product Description

Product Parameters

Main Parameters	Z3050×16 Radial Drilling Machine
Maximum Drilling Diameter (mm)	48/50 (steel/casting)
Distance from spindle centerline to column generatrix (minimum - maximum) (mm)	360-1600
Distance from spindle end to base table (minimum-maximum) (mm)	300-1150
Spindle travel (mm)	220
Spindle taper	MT.5
Spindle speed stages	6 Level
Spindle speed range (r/min)	78.135.240.350.590.1100

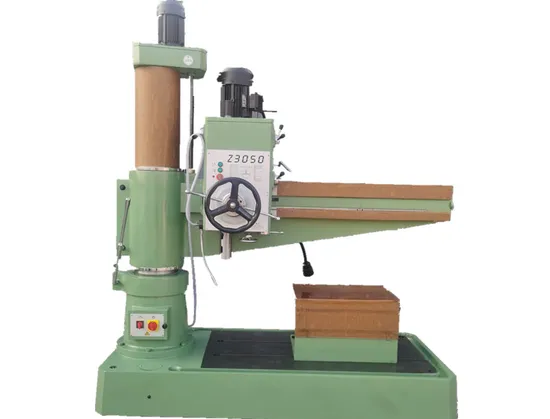

The Z3050 radial drilling machine has a drilling diameter of 50mm, which is mainly composed of a base, an inner column, an outer column, a rocker arm, a headstock, and a workbench. The inner column is fixed at one end of the base, and an outer column is sleeved on the outside of it, and the outer column can rotate 360 degrees around the inner column. One end of the rocker arm is a sleeve, which is sleeved on the outer column to move up and down. Because the screw rod and the outer column are connected as a whole, and the lifting nut is fixed on the rocker arm, the rocker arm cannot rotate around the outer column, but can only rotate around the inner column together with the outer column. Detailed Photos

Company Profile
Certifications
Packaging & Shipping


FAQ:
1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: You can pay by T/T . You can also pay to my company business bank account.
4.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.
Why choose us ?
1. Compared with other factories, casting material which produced by our company independently is really better than the others.
2.one year guarantee for whole machine .
3.24-hours technical support by E-mail or telephone
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.

---
