Auto PC Slab Making Machine Precast Concrete Tile Slab Making Machine Concrete Floor Tile Making Machine Baldosa De Concreto

Product Description

Technical Parameters
Production capacity	700m2 /8hours
Preset pressure	500 ton
Forming method	Hydraulic press
Switchboard power	30KW
Product specification	1000*200-500*20-50mm
Dimensions	4000*2000*2650mm
Host machine weight	13000KG
Labor capacity	4-5 wokers/shift

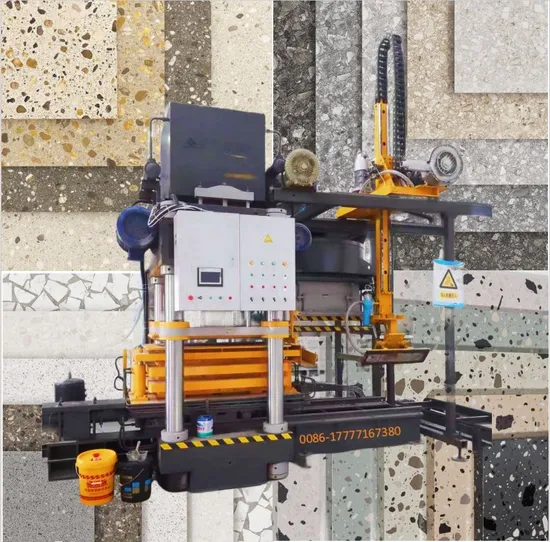

HFT650 Terrazzo tile machine,curbstone machine,Imitation stone machine Features auto PC slab making machine precast concrete tile slab making machine concrete floor tile making machine baldosa de concreto

-The molding process uses a high-pressure filter press molding process, which can comprehensively improve product quality and strength while ensuring rapid production;

-The equipment is fully controlled by PLC computer, which can control all the actions of the equipment, oil circuit and gas circuit system through the computer, reducing labor costs and improving production efficiency;

- Lifting mold frame, without changing the mold, by adjusting the limit of the frame, it can produce curb stone products with different thicknesses;

-The main cylinder, base, guide column and other frame parts of the main engine are all made of integral castings, which can greatly extend the life of the main engine. Under natural circumstances, the castings can be guaranteed for 20 years.
Contact: Somi Wu Whasapp: +86 17777167380
Description of molding process

- HFT650 concrete slab making machine, the forming process adopted is a forming process used to form the concrete slurry by high pressure pressing. It is characterized in that during the pressing process, the water in the slurry can be squeezed out so that the green body can be quickly formed and demoulded, and in the process of squeezing out the water, the concrete slurry is locked so that it will not be lost together with the water. To preserve the strength of the finished product.
Advantages
The advantage of this process is that it can be pressed with wet concrete slurry, the finished product has less air holes, and has a relatively good degree of bonding between cement and sand; at the same time, it has a looser ratio in moisture control than dry hardness. (15%-20%, dry hardness 6%-8%); at the same time, no vibration is involved in the molding process, so the noise is relatively small during mechanical operation.
Contact: Somi Wu Whasapp: +86 17777167380
Mold Features

- The mold is a combined structure of mold core, frame, liner and socket, which is easy to repair and replace
- The main part of the mold is made of integral pouring material, and the mold has a long service life
- The upper head and the lower mold core are equipped with drainage holes and auxiliary drainage grooves, which are convenient for quickly filtering out water during the molding process
- The indenter and core are equipped with a detachable filter layer for filtering mud, which is easy to disassemble, wash and replace.


Contact: Somi Wu Whasapp: +86 17777167380
Finished products

Similar Products

HFT300 Terrazzo tile making machine
1) Special designed for manual operation,low investment, high efficiency
2) Two molds at both sides, can produce terrazzo tiles at the same time
3) Hydraulic pressure guarantees the high density of the terrazzo tile
4) The tile machine easy operation,low maintenance rate
5) HFT300 terrazzo tile machine can produce floor tile,pave brick,paving tile,garden tile, with customized pattern
6) The machine can install with Pan mixers
7) Only three or four workers can run the terrazzo tile molding machine

Artificial quartz stone slab making machineEngineered quartz (not to be confused with Quartzite, another appealing natural stoneused as counters) is a manmade product created mostly from natural materials. It's made of 90 to 94 percent ground quartz and 6 to 10 percent resins and pigments that are combined into durable and nonporous slabs. Application of artificial quartz stone and engineered quartz plate [1]For engineered marbles the most common application is indoor flooring and walls, while the quartz based product is used primarily for kitchen countertops [2] As an alternative to laminate or granite. [3] Related materials include geopolymers and cast stone. Unlike terrazzo, the material is factory made in either blocks or slabs, cut and polished by fabricators, and assembled at the worksite.

Full-automatic cement color roof tile making machine 1. Quick molding speed, high output, reliable performance. Adopting PLC automatic control. man-machine interface makes performance more reliable and more convenient. The molding speed can reach 8 pcs/min, with full hydraulic and pneumatic production. 2. Slurry concrete is pressed by pressure filtration type mould. Final product is perfect in structure and various in designs, big in density, and high in strength, precise in size, which can meet any building need. 3. Multi-usage. It can make kinds of color tiles, such as roof tiles, ridge tiles, edge tiles, drainage tile and gutter tiles and so on.
