High Pressure Thermoplastic Hose SAE 100r7

Product Description

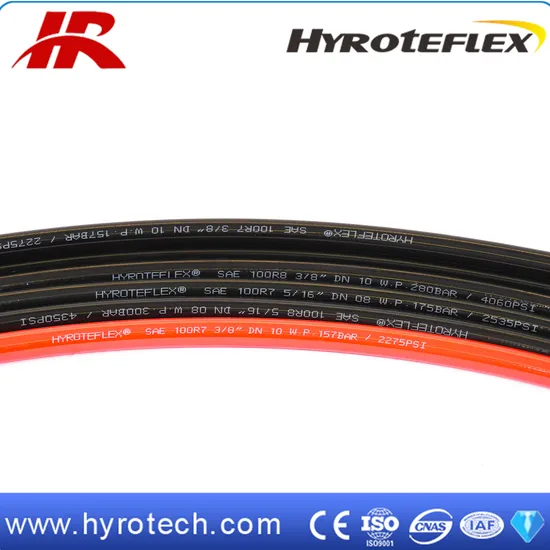

High Pressure Thermoplastic Hose SAE 100R7
HYROTECH Strength 1.Competitive Prices
2.Only produce high quality products
3.Raw material quality strictly checked before production
4.Various tests before shipping to make sure stable quality 5.Very fast delivery time
Product Paramenters

DN	Hose I.D		Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
	Inch	MM	MM	MPa	Psi	MPa	Psi	MM	Kg/m	Metres
3	1/8	3.3	8.5	17.2	2500	68.9	10000	13	0.037	20/100
5	3/16	4.8	10.8	20.7	3000	82.7	12000	20	0.068	20/100
6	1/4	6.4	13.0	20.7	3000	82.7	12000	33	0.085	20/100
8	5/16	8.0	15.1	17.2	2500	68.9	10000	46	0.103	20/100
10	3/8	9.5	17.0	15.5	2250	62.1	9000	51	0.141	20/100
13	1/2	12.7	22	13.8	2000	55.2	8000	76	0.210	20/100
19	3/4	19.0	26	8.6	1250	34.5	5000	127	0.287	20/100
25	1	25.4	32	6.9	1000	27.6	4000	203	0.542	20/100

Details Image
Company Profile
Qingdao Hyrotech Rubber & Plastic Products Co., Ltd
HYROTECH is a leading manufacture of various rubber hoses&related accessories in China for more than 10 years.
Our products have been sold to more than 60 countries, including USA, Brazil, Colombia,Chile, Argentina,Peru,
Russia, Ukraine, Thailian,Spain, UAE, S.A., CA,etc.
Product Range
Product Packaging
Manufacturing Technique
Contact Us We are waiting for you, please don't hesitate to contact us.
Hope to be one of your best hose suppliers!!!

---
