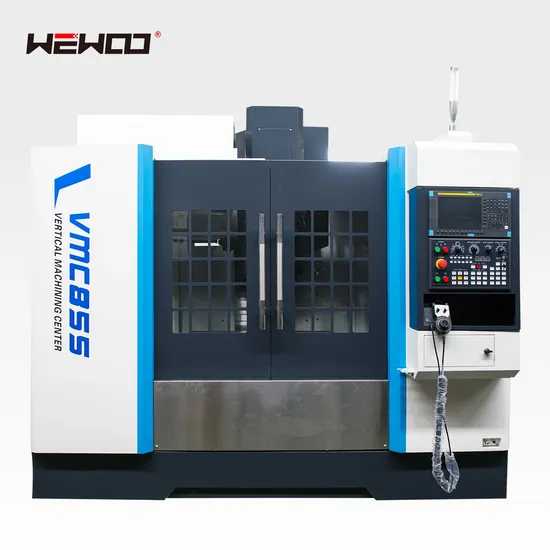

Vmc650 Vmc850/855 Vmc1160 Vmc1260 Vmc1370 Vmc1690 Heavy Duty Large/Small Universal Precision CNC Vertical Machining/Machinery Center for Moulds and Metal Parts

Product Description

VMC650 VMC850/855 VMC1160 VMC1260 VMC1370 VMC1690 Heavy Duty Large/Small universal precision CNC Vertical Machining/Machinery Center for Moulds and Metal Parts
Product Description


Specifications

Specifications	Units	VMC855
Table size	mm	1100*550
X axis travel	mm	800
Y axis travel	mm	550
Z axis travel	mm	550
Max. worktable load	kg	500
T slot(number-width-pitch)		5-18x90
Max. spindle speed	rpm	8000(Optional:10000 )
Spindle taper	mm	BT40
Main motor power	kw	11/15
X/Y/Z rapid traverse speed	m/min	24/24/24
Cutting feed speed	mm/min	1-8000
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	595
Distance between spindle nose and worktable surface	mm	120-670
Positioning accuracy	mm	±0.0075
Repeat positioning accuracy	mm	±0.005
Tool magazine		Arm 24
Max. tool diameter	mm	φ78( Adjacent)/ φ120(Apart)
Max.tool weight	kg	8
Machine weight	kg	500
Overall dimension	mm	2700*2350*2850

Product Parameters

Features: 1. Resin sand castings.
2. Taiwan's three-axis ball screw. (Taiwan)
3. Precision lock nut. (Shanghai Yu Kai) (standard)
4. Taiwan-made spindle, Japan NSK bearing, spindle pulley and belt.
(Taiwan Health) 8000 rpm
5. Taiwan-made pressurized cylinder. (Taiwan Hao Orange) (standard)
6. Imported bearings (P4 grade). (standard)
7. Domestic high quality coupling. (Tianjin Longchuang) (standard)
8. Tool magazine 24 bucket knives (Tokyo, Taiwan)
9. X, Y, Z (bottom) stainless steel rail protection. (standard)
10. Imported electronic lubrication pump. (standard)
11. Domestic cooling system water pump, water tank. (standard)
12. Pneumatic components, . (standard)
13. Headstock weight. (standard)
14. System.Siemens 828D, FANUC, Mitsubishi M80A.
15. Machine alarm light (standard)
The machine is equipped with an anti-impact device, which can absorb the vibration caused by the impact caused by the worker's operation error, so as to minimize the damage of the impact and ensure the original accuracy;
The oil and water separation design can effectively separate the lubricating oil from the cutting fluid, and prevent the cutting fluid from deterioration, affecting the processing quality.
Detailed Photos

TAIWAN PRECISION SPINDLE
1. Spindle taper is BT50;
2. Spindle speed 6000rpm , can enlarge to 8000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test
TAIWAN TOOL MAGAZINE
1. Standard with Taiwan 24 Arm tool magazine, tool change time only 3 seconds.
2. Brand: OKADA
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI
CONTROL SYSTEM
Standard: GSK / KND control
Optional : Siemens , FANUC, Syntec ect.
AIR STORAGE TANK
Air storage tank to ensure the stability of spindle tool change

PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components
SCHNEIDER ELECTRICAL COMPONENTS
1. with Schneider safety electrical components
2. quick plug as standard
LEAD SCREW AND COUPLING
Taiwan precision lead screw.
1.Lead screw bearing use SKF or NACHI bearing,
2. Coupling R+W directly connected .
Company Profile
FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )

---
