High Precision Stable Surface Grinding Machine Sg4080ahd Hot Sale Automatic Surface Grinding Machine

US$11,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SG4080AHD
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
High Precision Stable Surface Grinding Machine Sg4
Max.Grinding Workpiece SizeTmm
83*420*270
Table Longitudinal TravelTmm
830
Table Cross TravelTmm
420
Max. Distance From Spindle Center to Tab
500
Max.Table LoadTkg
200
Transport Package
Plywoiod Case
Trademark
Shenghuan
Origin
China
HS Code
8460199000
Production Capacity
200

Packaging & Delivery

Package Size
230.00cm * 190.00cm * 217.00cm
Package Gross Weight
2000.000kg

Product Description

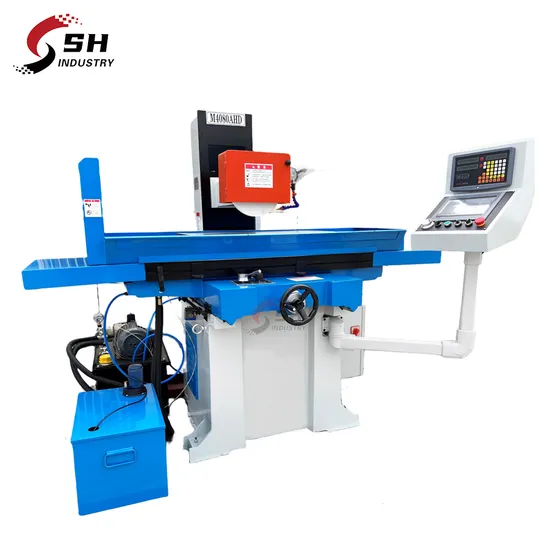

High Precision Stable Surface Grinding Machine SG4080AHD Hot Sale Automatic Surface Grinding Machine
Product Description
Main technical specifications:
Specifications Unit SG4080AHD
Max.grinding workpiece size mm 83x420x270
Table longitudinal travel mm 830
Table cross travel mm 420
Max. Distance from spindle center to table mm 500
Workbench slide One flat one V
Max.table load kg 200
Table size mm 800x400
Table T slot (slot number x slot width) 14x1
Speed of table longitudinal movement M/min 18
Feed amount of front and rear hand wheels MM 0.02/grid, 4/turn
Upper and lower MPG feed mm 0.001/0.01/0.1/grid
0.1/1/10/turn
Grinding wheel size(ODxWxID) mm Φ350×32×Φ127
Spindle speed(50HZ) rpm 1440
Spindle motor power KW 4
Total motor power KW 6.5
The process surface of the base level of the parallel degree mm 300:0.005
Surface roughness μm Ra0.32
Grinding head vertical feed motor kw 0.75
Table front-rear feed servo motor kw 0.06
Fuel tank capacity L 80
Cooling pump motor KW 0.04
N.W./G.W. kg 2000/2300
Packing size mm 2300*1900*2170

Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
