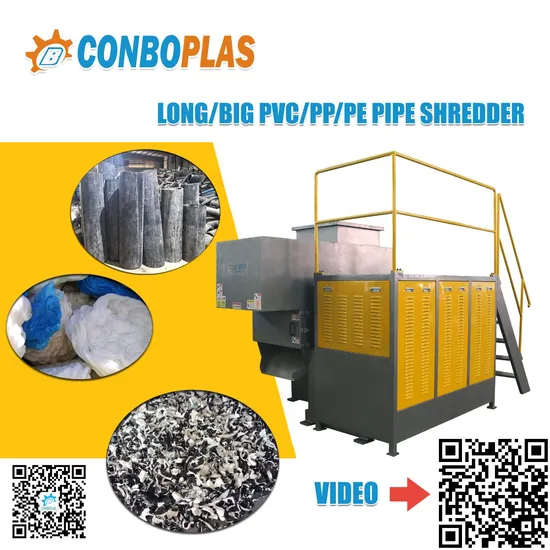

Hopper Movable Powerful Single Shaft Shredder for Hard Heavy Load Large Long Plastic PVC/PE/PP HDPE LDPE Pipes Tubes Lumps

Product Description

Hopper Movable Powerful Single Shaft Shredder for Hard Heavy Load Large Long Plastic PVC/PE/PP HDPE LDPE Pipes Tubes Lumps
Product Description
The shredding machine is a general-purpose shredder developed and developed by our factory. It can effectively tear up most materials. Low energy consumption, high output, easy to move and so on. Users can choose different models according to the size of the material and the amount of processing required to achieve the purpose of "limited resources, unlimited recovery". This series of shredders can generally be used to shatter broken plastics, rubber, tires, nylon plastics, car bumpers, abandoned fishing nets, plastic pipes, fibers, paper, electrical components, cables, circuit boards, and wood.
Features
1. Single shaft shredder has characters as follows: single shaft shredder properties as follows: strong, durable. It is suitable to recycle a variety of bulk solid materials, refractory materials, plastic containers and plastic barrels, plastic films, fibers, paper. Shredded particles can be small to 20mm according to different needs. We can provide all kinds of feed hopper; low speed rotary cutter in accordance with customer needs, which will be low noisy and energy saving.
2. Single shaft shredder consists of a knife disc and a static knife to complete shredding material. Cutter is composed of a base shaft and several shapes quadrilateral knife block. The knife block has 4 blades, can be replacing the use of. The knife block along the axis of the base is in multiple rows into type V, and fixed with screws in the radical axis, rotated with the based shaft together, finally comprise a knife disc. The two-static knife is fixed on the machine frame. The material is sent to the cutter by the horizontal hydraulic cylinder. The speed is stable and adjustable, and the propulsive force is large and uniform. It is applicable to the recovery of a variety of bulk solid materials, refractory materials, irregular plastic containers and plastic barrels, tubes, films, fibers, paper etc. Spindle speed is 45 ~ 100 rpm/min.
3. We can offer a variety of rotor configurations to suit different applications. Such as: High Performance Rotor, Hard Material Rotor and Soft and Film Rotor.
4. When customers choose the rotor, we can also offer different knives holder to suit different requirement. Such as: Welded Knife holders, Assembled Knife holders and CNC cutting knife holders.
Product Parameters

Model	CB-S600	CB-S700	CB-S800	CB-S1000	CB-S1200	CB-S1500
Motor power/kw	22	37	45	55	75	90/110
Rotating blade quantity/pcs	26+4	30+4	36+6	48+6	58	98
Fixed blade quantity/pcs	4	4	4	4	4	6
Blade material	SKD-11/D2/DC53	SKD-11/D2/DC53	SKD-11/D2/DC53	SKD-11/D2/DC53	SKD-11/D2/DC53	SKD-11/D2/DC53
Shaft rotating speed/rpm	75	75	75	75	80	80
Shaft rotating diameter/mm	260	280	400	400	400	550
Shredding room dimension/mm	600x600	700x600	800x800	1000x1000	1200x1200	1500x1500
Hydraulic power/kw	2.2	2.2	3	4	5.5	7.5
Cylinder movement length/mm	600	600	800	1000	1200	1500
Overall dimension/mm	1800x1600x1850	1830x1750x1850	2200x1780x2100	2500x1850x2300	3500x2000x2400	4800x2350x2400
Machine weight/kg	2200	3000	3700	4500	7000	9200

Remarks: the inforamtion above is only for reference; please contact us for further details. Applications
Detailed Photos
Business Cooperation
Machining Equipment
More Products For Option
CONTACT INFORMATION:
Manager: BOSH LEUNG (MR.)
Company website: http://conboplas1986.en.made-in-china.com
Address: Leyu Development Zone, Zhangjiagang city, Jiangsu Province, China.

---
