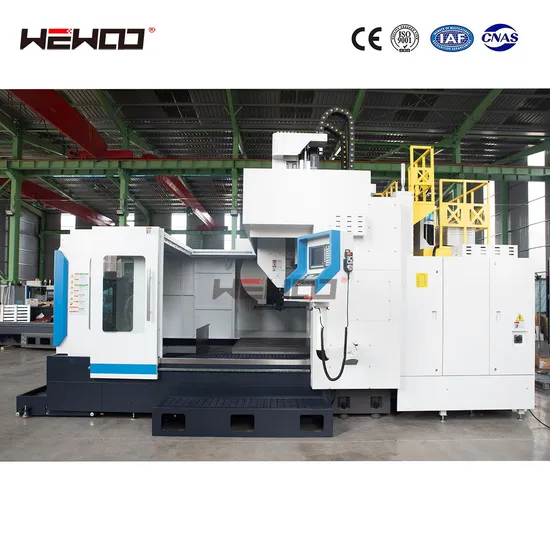

Gmc2016 Jiangsu Wewoo Manufacturing Advanced Large Gantry Milling Machines CE Marked

US$30,000.00-35,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GMC2016
Type
Worktable Milling Machine
Object
Hardware
Structure
Gantry
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Color
Customzied
Weight
18500kg
T Slot(Number-Width*Pitch)
7-22*200
Distance Between Spindle Nose and Workta
200-1000mm
Max. Worktable Load
4000kg
Max. Spindle Speed
6000rpm
Table Size
2100X1400mm
Main Motor Power
15/18.5kw
Spindle Taper
Bt50/φ190
Rapid Traverse Speed
15m/Min
Cutting Feed Speed
10m/Min
X Axis Travel
2000mm
Y Axis Travel
1700mm
Z Axis
800mm
Gantry Width/Height
1700mm/1080mm
Transport Package
Wooden Case
Specification
720cm * 450cm * 430cm
Trademark
wewoo
Origin
China
HS Code
8459619000
Production Capacity
300/Month

Packaging & Delivery

Package Size
740.00cm * 470.00cm * 450.00cm
Package Gross Weight
19000.000kg

Product Description

Gmc2016 Jiangsu Wewoo Manufacturing Advanced Large Gantry Milling Machines CE marked

Product Description

Product Parameters

Technical parameter:
Item Unit GMC2016
X axis travel mm 2000
Y axis travel mm 1700
Z axis travel mm 800
Spindle nose to worktable mm 200-1000
Distance between two column mm 1700
Leadscrew diameter mm 63/50/50
Linear guideway width mm 55/55/Rectangle
Worktable Length mm 1700
Worktable width mm 1080
T slot qty-width*distance mm 7-22*200
Rapid traverse speed m/min 15
Spindle speed rpm 6000
Spindle motor power kw 15
Fast moving speed m/min 20/20/10
Cutting feed speed mm/min 10
Spindle taper BT50
Feed motor power kw 15/18.5KW
X/Y/Z axsis motor torque Nm 15/15/12
Tool Magazine Capacity pcs Disc/24
Positioning accuracy mm 0.016/0.015/0.015
Repeat accuracy mm 0.012/0.010/0.010
Tool magazine 24
Table load kg 4000
Overall dimension(L*W*H) mm 7200mm*4500mm*4300mm
Machine weight(about) kg 18500

Standard accessories:
Mitsubishi M80A controller
Spindle speed 10000rpm belt type
24 tools disc type
Screw type chip conveyor & chip bucket *2
Chain type chip conveyor & chip bucket *1
Nitrogen balance cylinder
Air conditioner in cabinet
Air gun+Water gun
Automatic lubricating system
2-Axis linear guideway from Taiwan Hiwin
Ball leadscrew from Taiwan Hiwin
Levelling pad,nut and bolts
Tools and tool box
Optional accessories:
Spindle oil cooler
CTS 20bar
CTS 30bar
Reneshaw tool probe TS27R
Reneshaw workpiece measurement device OMP60
Gear head
Manual angle head
Auto angle head
Chain type ATC 32 tools
Chain type ATC 40 tools
HEIDENHAIN scales/1m
4TH Axis rotary table 255mm+tail stock+hydraulic station
5TH Axis rotary table 255mm+hydraulic station

Detailed Photos
Stabilizing table
Worktable speed variable
speed, good wear resis-
tance, stable control.
Ram milling head
360-degree right-angle
milling head can be in-
stalled to realize high-pre-
cision and complex work-
piece processing.
Disk knife library
To complete a variety of dif-
ferent processing, the need
for milling drilling mantis
hole tapping, greatly shorten
the processing time, reduce
production costs.
Systerm
The system can be in-
stalled according to cus-
tomer needs all brand sys-
tems to achieve human-
ized assembly.
Company Profile

FAQ
1:How can I choose the most suitable machines ?
Answer :Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
Answer :We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3.How does your factory do regarding quality control ?
Answer :Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.
4. What is your trade terms?
Answer : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
Answer : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
Answer : 1 set .(Only some low cost machines will be more than 1 set )
