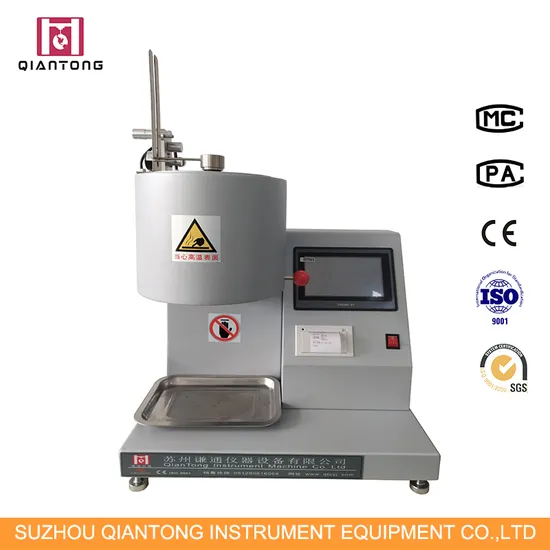

PP Material Testing Machine with High Precision Temperature

Product Description

1. Qiantong main scope of testing machine Electronic universal material testing machine, Horizontal tension testing machine, Hydraulic universal testing machine, MFI, Charpy Impact, Izod Impact, HDT-Vicat tester, Hardness tester, Torsion tester, Metallographic series, Oven and so on. (We accept customization.)
2. Quadratic property It is used for testing of high melting-point engineering plastic such as PE, PASU, fluoroplastic and nylon. As well as testing of low melting-point material such as PS, PP ABS resin, POM. It is commonly adapted by college institution, research center, quality inspection organizations, plastic manufacturer and petrol chemical industries.
Product features
1.3 sections control temperature method, three platinum resistance sensors and three copper heating sleeves are used to control the temperature separately. High precision intelligent PID control, heat temperature speed can be adjusted.
2. temperature solution is 0.1 ºC, the temperature fluctuation is not over 0.5ºC within 24h, the placement sensor resolution is 0.001mm
3. over-temperature protective device
4. material can be cut manually and automatically, the cutting time(0~999)can be set arbitrarily and times(0~999)
5.when testing , can choose MFR/ MVR or both, it can also calculate the melt rate ratio. Both methods are tested when the piston rod moves to a certain position.
6. Can set 240 seconds (GB3682) material preheating seconds countdown. The weight is automatically loaded and automatically cut when loaded to the specified period. It can be set ASTM standard.
7.Built-in microprinter
8.High precision touch screen controller(7 inch)
9.Reserve the RS232 interface or USB interface to connect to the computer
3. Criteria

Standard NO.	Name
GB/T 3682-2000	Thermoplastic melt mass flow rate and melt mass volume flow rate testing-MFR
ISO 1133-1:2011	Plastics-Determination of the melt mass-flow rate(MFR) and melt volume-flow rate(MVR) of thermoplastics - Part 1:Standard method
ASTM D1238	Standard test method for determining melt flow rates of thermoplastic plastics by extruded plastimeters

4. Technical parameters Temperature range:0ºC-400ºC Temperature fluctuation:±0.2ºC Temperature uniformity:±1ºC Temperature display resolution rate:0.1ºC Time display resolution rate:0.1S Cylinder diameter:Φ2.095±0.005mm Outlet length:8.000±0.025mm Barrel diameter:Φ9.550±0.025mm Weight precision:±0.5% Method of output:Micro automatic printout Method of cutting:Automatic and hand cutting Test load:8 grades Power :AC220V±10% 50HZ
FAQ
Q:Are you a trade company or factory?
A:Our company is a factory and directly sales.
Q:Can your company accept customization?
A: Yes. Our machines can be customized by client.
Q:How to guarantee your after-sales service?
A:Our philosophy is one year warranty and lifetime service. After the warranty period is exceeded, if there is any problem, we will provide support for you in time. (only charge travel expense and parts cost at most.)
Q:What is the language about software?
A:It can switch between Chinese and English.
Q:May the customer not use your company's computer?
A:Sure. But please tell us what type your computer is. We need to confirm your computer can install the software. And we can subtract the price of computer from offer.

---
