UV270 PVC Injection Molding Machine

US$1.00-2.00 1 Piece (MOQ)

Basic Info.

Model NO.
UV/270
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Certificate of Origin
1
Certificate of Fumigation
1
Packing List
1
Commercial Invoice
1
Easy Broken Parts
1
Transport Package
Wooden Pallet and Dust Cover
Trademark
K&E
Origin
China
HS Code
8477101090
Production Capacity
200/Y

Product Description

PVC IMM :
Cooling fan installed on barrel,Widened protective door.,Increased motor.

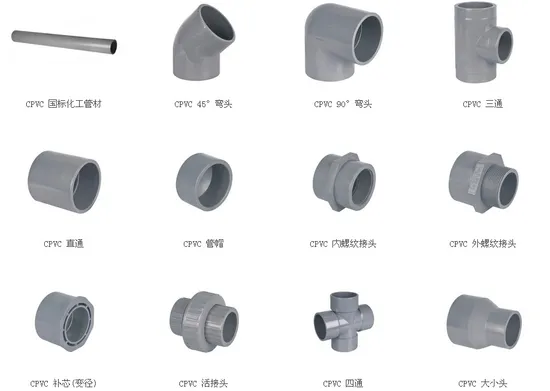

The main production of PVC material pipe fittings
Parameters:
PVC STYLE SPECIFICATION UV/270
SCREW TYPE A B C
Injection Unit
Screw diameter mm 50 55 60
Screw L/D ratio L/D 24.2 22 20.2
Shot volume(theoretical) CM3 530 641 763
Injection weight(PVC) g 675 817 972
Injection rate g/s 263 318 378
Injection pressure MPA 204 169 142
Screw speed rpm 120
Clamping Unit
Clamping force KN 2700
Open stroke mm 560
Space between tie-bars(W*H) mm 580*580
Max mould height mm 580
Min mould height mm 200
Ejector stroke mm 170
Ejector force KN 70
Others
Max pump pressure MPA 16
Pump Motor power KW 29
Heating power KW 16.8
Numbers of heating area Segment 3+1
Machine dimension(L*W*H) M 6.1*1.65*2.35
Oil tank cubage L 380
Machine weight TON 9

Configuration List:
Name Brand
Computer KEBA(AUSTRIA) or EST
Servo Drive INOVANCE(CHINA)
Servo Pump SUNNY(USA) / SUMITOMO(JAPAN)
Servo Motor PHASE(ITALY)
Electro-hydraulic Proportion valve HNC (Taiwan)
Stroke transducer NOVO or Miran(GERMANY)/GERFRAN(ITALY)
Breaker Schneider (FRANCEN)/Siemens(GERMANY)
Contacts Schneider (FRANCEN)/Siemens(GERMANY)
Switch Schneider (FRANCEN)/Siemens(GERMANY)
Hydraulic Direction Valve Vickers (USA) or Rexroth (GERMANY)
Plasticing Motor DINAMIC(ITALY) or STF(ENGLAND)
Hydraulic Hose MANULI(ITALY)/CONTINENTAI(GERMANY)
Plasticing speed sensor OMRON
Sealing ring HALITE or TREIIEBORG(UK or GERMANY)
