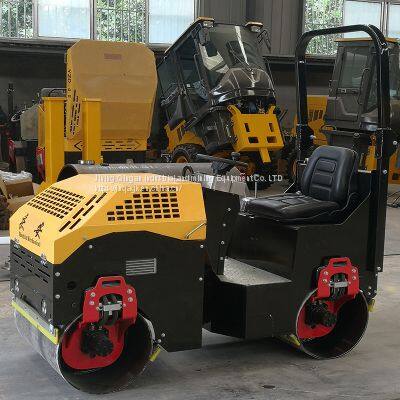

| Product model | QA-1T | ||
| Engine | Honda/CHANGFA | vibration force | 30kn |
| Engine type | Gx390/188F | Amplitude | 0.7mm |
| Power | 9.5kw/7.5kw | Vibration Frequency | 65HZ |
| fuel consumption | 363g/kw/h | Climbing angles | ＜30° |
| Lubricating oil quantity | 1.1L | Walking speed | 0-3.6km/h |
| Hydraulic pressure oil mass | 20L | Working wheel size | 740*510mm |
| tank capacity | 60L | After the steel wheel | 800*510mm |
| Drive way | Hydraulic double steel wheel drive | Wheels driven | 2 |
| working | Go forward and backward | weight | 1050kg |
| vibration mode | Electric clutch | Packing size | 210*90*165cm |
