Softel FTTH Optical Equipment Mini OTDR

Product Description

FTTX Testing Tool Mini OTDR Meter
Brief Intro

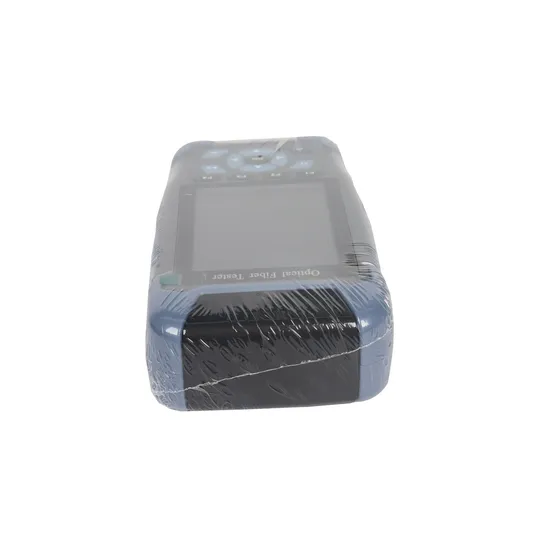

SFT3200D Mini-Pro OTDR is apply to FTTx and access network construction and maintenance, to test fiber breakpoint , length, loss and input light automatic detection, automatic test by one key. The tester is compact with 3.5inch colorful LC D screen, new plastic shell design, shock-proof and drop-proof. The tester also combine 8 functions with highly integrated OTDR, Event maps, Stable Light source , Optical power meter, Visual fault locator , cable sequence proofreading, cable len gth measurement and lighting functions. It could quick detection of breakpoint, universal connector, .600 internal storage, T F card, USB data storage and built-in 4000mAh lithium battery, USB charging .It is a good choice for long term field work .
Features Integrated design, smart and rugged IP65 protection level, outdoor enhanced 7-inch anti-reflection LCD screen PON online test module (1625nm) is optional Support multi-language display and input
APPLICATIONS FTTX test with PON networks CATV network testing Access network testing LAN network testing Metro network testing
Specification

Mini-Pro OTDR
Model	SFT3200S	SFT3200D
Wavelength	1550nm±20nm	1310nm/1550nm±20nm
Fiber Type	G.652
Dynamic Range	22dB	24dB/22dB
Event Blind Zone	3m
ATT Blind Zone	8m
Test Range	500m~60km
Pulse Width	3ns~10us
Ranging accuracy	±(1m+ Sampling interval +0.005%×Test distance)
Loss accuracy	±0.05dB/dB
Sampling Points	16k~128k
Sampling resolution	0.05m~8m
Reflection accuracy	±3dB
Data Storage	Internal:≥600;External:TF Card
Laser Safety Level	Class 1
File format	SOR Standard file format
Connector	FC/UPC(Interchangeable SC,ST)
OPM
Wave Range	800nm~1700nm
Interface Type	Universal Joint FC/SC/ST
Test Range	-50dBm~+26dBm
Uncertainty	±5%
Frequency Identification	CW/270/330/1k/2kHz
Calibration wavelength	850/980/1300/1310/1490/1550/1625/1650nm
LS
LD Type	FP-LD
Wavelength	1550nm±20nm	1310nm/1550nm±20nm
Output Power	≥-5dBm
Modulation Frequency	270/330/1k/2kHz
Stability	CW,±0.5dB/15min (Test after 15 minutes of preheating)
Connector	FC/UPC(Interchangeable SC,ST)
VFL
Wavelength	650nm±20nm
Output Power	≥10mW
Mode	CW/1Hz/2Hz
Connector	FC/SC/ST
RJ45 Cable Length Measurement
Test Range	300m
Other Parameters
Display	3.5 inch Color LCD
Data Interface	Micro USB
External storage	TF Card
Power Supply	Polymer Li-Battery:3.7V,4000mAh Adapter:5VDC,2A
Battery Life	Standby>20h;Measuring time>12h
Operating Temperature	-10ºC~+50ºC
Storage Temperature	-40ºC~+70ºC
Relative Humidity	0~95%Non Condensing
Size	173mm×82mm×37mm
Weight	≤350g
Functions: Blue,OTDR/EVENT MAP/OPM/LS/VFL/RJ45 Sequence/RJ45 Cable Tracker(Additional purchase detector)/RJ45 Line length/Flashlight

---
