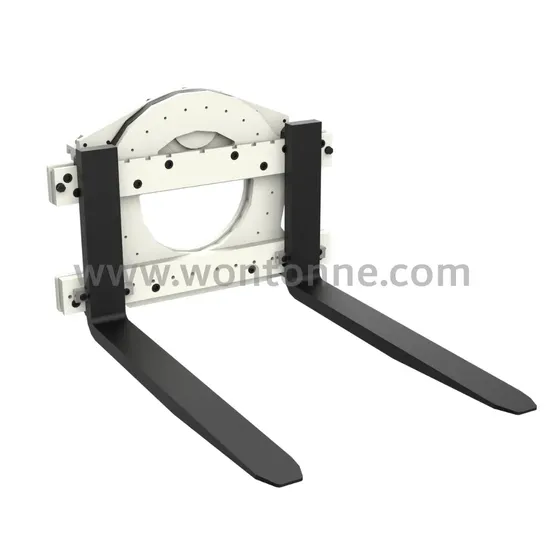

G Series Forklift Rotator Equipped with Observation Hole for Good Vision

Product Description

G Series Rotator, Hollow-out Type
Forklift attachment rotator quickly spin or flip containers to empty their contents. The appearance of the rotator, no doubt to the choice of forklift more than a new direction. The use of the rotator has brought great convenience to warehouse-handling enterprises.
Product Description

Capacity	Load Center	Model No.	Mounting Class	Mounting Class	Fork Max. Spacing	Carriage Width	Overall Width	Short Arm Length	Vertical Center of Gravity	Horizontal Center of Gravity	Weight	Effective Thickness
kg	mm		A	B	C mm	D mm	E mm	F mm	VCG mm	HCG mm	kg	ET mm
2500	500	RRB25G-990A	ISO 2A	ISO 2A	787	990	990	813	306	80	260	153
2500	500	RRB25G-990B	ISO 3A	ISO 2A	787	990	990	813	310	108	270	186
3000	500	RRB30G-990A	ISO 2A	ISO 2A	787	990	990	813	306	80	260	153
3000	500	RRB30G-990B	ISO 3A	ISO 2A	787	990	990	813	310	108	270	186
3000	500	RRB30G-1115A	ISO 2A	ISO 2A	940	1115	1115	813	306	80	267	153
3000	500	RRB30G-1115B	ISO 3A	ISO 2A	940	1115	1115	813	308	109	276	186
3500	500	RRB35G-1065B	ISO 3A	ISO 3A	866	1065	1065	813	308	117	316	194
3500	500	RRB35G-1220B	ISO 3A	ISO 3A	1016	1220	1220	813	306	119	328	194

Product Show
Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ 1: What kind terms of payment can be accepted?
A: For terms of payment, normally L/C, T/T.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, etc.
3: What about the delivery time?
A: 1-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

---
