automatic Roll paper sheeting machine

Product Description

Product Description
Roll paper sheeting machine
FUNCTIONAL CHARACTERSTICS
This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity,
speed and finish singleness cutting , equipped with automatic unwinding system and air shaft,
which will be easy to load and unload.
with photoelectric system to searching the marks , and with the electric static eliminator after cutting the sheets
Purpose
Sizing cutting for all kind paper, aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil and all kinds of material in roll form.

Model	500mm paper sheeting machine
Max Feeding Width ( mm )	500
Main Engineer Power ( w )	400
Speed ( t/m )	110
Size ( mm )	1200*900*1280
Weight ( kg )	400
Precision ( mm )	±0.10
Power	220V 50HZ
shipping Term	FOB Shanghai
Shaft diameter	3 inch / 76mm
unwinding paper diameter	600mm max

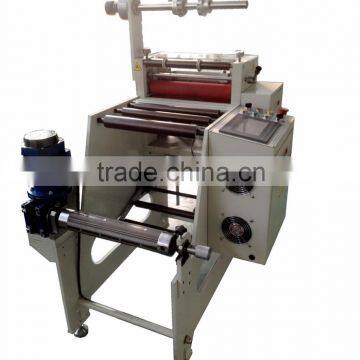

Machine Pictures
paper sheeting machine
Unwinding:
Cutting and stacking :
Operation board :
Special Unwinding size 1000mm:
the shaft can take off when like this , standard machine no need take off shaft
Pressure adjustment part :

Electrical listing

DP- 500 paper sheeting machine
Electrical listing :
Touch Screen	KUNLUN	Made in China
Programmable Controller	MITSUBISHI	Made in Japan
Servo Driver	DELTA	TAIWAN,CHINA
Servo Motor	DELTA	TAIWAN,CHINA
Motor of cutting knife	TPG	Made in Japan
AC Contactor	RENMIN	Made in China
Solid State Relay 20A	Guguang	Made in China
Electric eye	Panasonnic	Made in Japan

HS Code:8441100000
Delivery time : 7 working days after received payment
Terms of payment :100% paid off before shipment ,
seller should offer operation videos of machine to customer
warranty and service plan
12 month after sale Warranty Service (excluding Wear and Tear item )
Our Services
After-service for paper sheeting machine:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines.

---
