| US$41,985.00-56,758.00 | 1 SET (MOQ) |

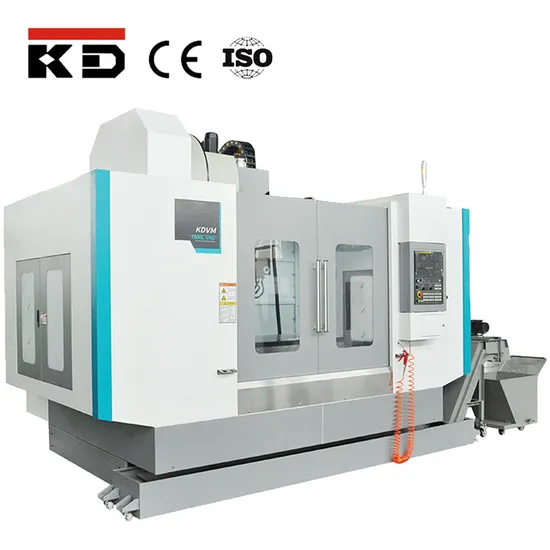

| MODELS | KDVM1580L |
| TRAVEL | |
| X axis | 1500mm |
| Y axis | 800mm |
| Z axis | 700mm |
| Spindle center to column | 810mm |
| Spindle end to table | 130-830mm |
| TABLE | |
| Tablesize | 1700×800mm |
| T-slot(width×number×space) | 22mm×5×140mm |
| Max.table loading | 1500kg |
| SPINDLE | |
| Taper bore of spindle | BT50 / Φ155mm |
| Spindle power | 15/18.5kw |
| Spindle speed | 6000rpm |
| FEED | |
| X/Y/Z fast travel speed | 12/ 12/ 12m/min |
| X/Y/Z Torque axis motors | 22/ 30/ 30Nm |
| ATC | |
| Tool number | 24 |
| Max. tool size (With adjacent tool) | Ф105mm |
| Max. tool size (Without adjacent tool) | Ф200mm |
| Max.tool weight | 15kg |
| Max tool length | 350mm |
| Time (tool-tool) | 2.91s |
| ACCURACY | |
| Positioning accuracy for X/Y/Z | ≤0.006mm |
| Min.Input | 0.001mm |
| OTHERS | |
| Overall dimension (LxWxH) with auto conveyor | 5600x3350x3000mm |
| Net weight | 13000kg |
