AF25 Spa Pool Filter Equipment Factory Price Swimming Pool Cartridge Filter High Quality Plastic Product

Product Description

Product Description

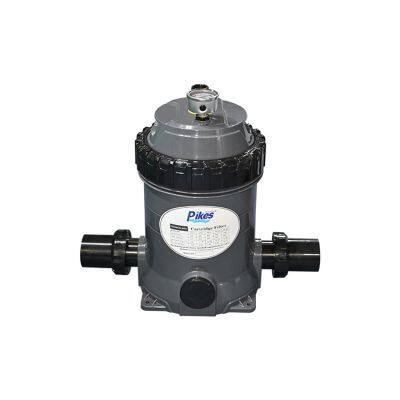

OEM PIKES Swim Pool Cartridge Filter System Filtration Equipment Fiberglass Sand Filters for House HoldCartridge filtration is an effective trouble-free proven method of filtration. Pool water enters the filter and passes through a polyester single element cartridge. Suspended particles are trapped and the water is returned to the pool. As the build-up of dirt in the element increases, so the water pressure rises and the flow decreases. When the pressure reaches an unacceptable level,the element must be removed and cleaned.Products DescriptionModel No.Filter Area (m³)ConnectionsMax Flow RateA (mm)B (mm)C (mm)F252.251.5inch 50mm92lpm5.5m³/h445387225AF504.631.5inch 50mm190lpm11.4m³/h625567225AF757.001.5inch 50mm283lpm17.0m³/h805747225AF1009382.0inch 63mm382lpm22.9m³/h985927225AF15013.722.0inch 63mm555lpm33.4m³/h11651107225This cartridge filters is compact and light.The UV-resistant tank can prevent it from the demage of the sun. Its maximum pressure is 350 kPa/50psi.Paper cartridge pool filters / cartridge for water treatmentMaximum Working Pressure300kPa/50psi/3.5barMax flow rate5.5m3/h-40.9m3/hValve connection1.5inch 50mm/2inch 63mmFilter area2.25m^2-16.83m^2Maximum Water Temperature40°C(100F)Features1) Compact and light2) UV-resistant tank3) Easy to service4) Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element5) Screw type air bleeder for easy removal of the trapped air inside the filter tank6) High quality oil filled pressure gaugeFunctions1. maximum working pressure: 250kPa/36psi/2.5bar2. factory testing pressure: 400kPa/58psi/4.0bar3. size of silica sand: 0.5-1.0mm4. maximum filtration velocity: 50cbm/h/sq5. maximum water temperature: 40 degreeProduct packagingOur ServiceOur Advantages1) High quality with Low Price2) Delivery in time short3) Vibration resistant Easy to transport and install.4) Body with excellent thermal managing design.5) Different colors for your select.Payment Terms1) Payment:30% in advance,+70% balance should be paid before delivery.2) Lead time:1x20ft for 20-25 days;1x40ft for 25-29 days3) Port of loading:guangzhou, Mainland China.4) Discounts are offered based on order quantities.Company InformationContact UsAny questions or inquiries, please feel free to contact us, we will always do our best for you!

---
