Best Quality Disposable Snack Package Box Making Machine

Product Description

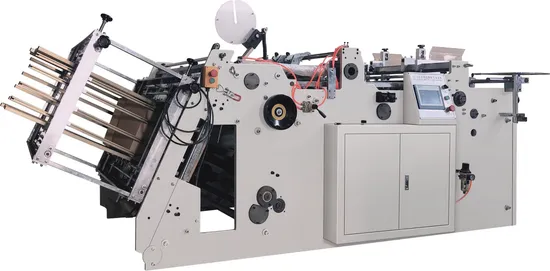

Full Auotmatic Paper Lunch Box Making Machine
Product Description
The automatic three-dimensional cardboard forming machine can produce hamburger boxes, boat boxes, kraft packing boxes, French fries boxes, pizza boxes, etc.,The boxes are made of cardboard or corrugated paper. .
Basic configuration: electric control box, paper feeding by servo, expressway, gluing device, forming device, paper delivery and delivery device.
Equipment special device (hot melt adhesive can be customized to produce 90 degree boxes)
The equipment uses the Siemens PLC touch screen set of electrical appliances, Delta servo motors and drivers, Omron photocell and CHINT low-voltage electrical components + man-machine interface.
(The machine track uses an imported chain to push paper, and if there is an error in the front and rear double-gloss paper, it will stop immediately without causing waste.
The bearing adopts domestic Harbin bearing, Wafangdian bearing, imported one-way bearing configuration to ensure the quality of the machine.
Product Parameters

Material Science	200-600g/m2paperboard/corrugated,Max.Thickness:1.5mm
Production speed	60-150pcs/min(depands on the size of the box)
Power requirements	380V 50HZ	5.5KW
Product specification	L100-450mm Angel:5-40 The width of the box100X580mm Sealing Height:15-200mm
Packing dimensions	3500X1320X1500mm(LxWxH)
Equipment weight	2200KG

ABOUT US
ZHEJIANG CHINAWORLD MACHINERY CO.,LTD is a profecianal machinery manufacturer and export company.Our machinery factory is specialized in producing all kinds of non-woven and paper products machine.Such as Face Mask Making Machiney,Non-woven Bag Making Machine,Non-Woven Cap and Shoe Cover Machine,Paper Cup Machine,Paper Straw Making Machine,Paper Plate Making Machine,Paper Cover Making Machine etc.

WORKSHOP

EXHIBITION

---
