Product Details
Product Description
Product Description
Specification

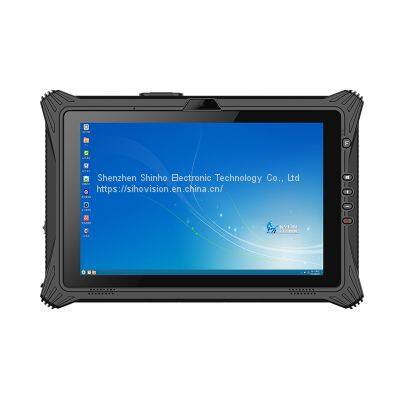

| Model:R-I10SHU |
| PC |
| CPU | Intel® Core™ i5-8250U/i7-8550U |
| OS | Windows 7/Windows 10 |
| RAM | 8GB/16GB DDR4L |
| ROM | 128GB/256GB/512GB |
| Network connections |
| WIFI | 2.4G+5G dual frequency, WIFI 802.11(a/b/g/n/ac) |
| Bluetooth | BT4.2 (BLE) class1 transmission distance: 10m |
| 3G/4G | LTE FDD: B1/B3/B7/B8/B20/B28A |
| WCDMA: B1/B8 |
| GSM: B3/B8 |
| Basic parameters |
| Dimension | 290 x 196 x 22mm |
| Weight | device unit 1140g |
| Device Color | black |
| LCD | 10.1 inch IPS 16:10, 1920*1200 |
| Touch Panel | 10 points Capacitive, G+G |
| Camera | Front 2.0MP Rear 8.0MP |
| I/O | USB 3.0 x 1, Type C x 1 |
| SIM Card x 1, TF Card x 1 |
| HDMI 1.4a x 1 |
| 12pins Pogo Pin x 1 |
| Φ3.5mm standard earphone jack x 1 |
| Φ5.5mm DC jack x 1 |
| Power | AC100V ~ 240V, 50Hz/60Hz output DC 19V/3.42A |
| GPS | Support GPS, glonass |
| NFC | Optional NXP100 |
| Battery |
| Capacity | 7.4V/860mAh |
| Type | Built-in Li-polymer battery brightness |
| Endurance | 30mins ( 50% volume sounds, 200 lumens, 1080P HD video display by default ) |
| Battery |
| Capacity | 7.4V/5000mAh |
| Type | Removable Li-polymer battery |
| Endurance | 8hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default) |
| Reliability |
| Operate Temperature | -20 °C ~ 60 °C |
| Store Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| IP Grade | IP65 |
| Module extension (5 choose 1) |
| Ethernet interface | RJ45(10/100M) x 1 |
| Serial port | DB9(RS232) x 1 |
| USB2.0 | USB 2.0 x 1 |
| 1D | Honeywell N6551/Optical resolution: 5mil/, scan speed: 50 times/s |
| 2D | Honeywell N3680, Optical Position: 5mil, Scan speed: 50 times/s |
| Optional Accsessory |
| Accsessory | Docking Charger, Hand-strap, Carry handle, Vehicle Mount, 19V Adapter,
Removable Battery, Stylus |
Certifications
Company Introduction
FAQ
1. We offer a life-long maintenance that is free in the one year.
2. In the two year after you received the products , if there is quality problem happening to the products, pls send us the pictures or video to showing the fault phenomenon, so can help our technicians to analyze the cause of problem, then we will send you the necessary spare parts and teach you how to repair it, free of charge.
3.If we can't find out the cause of failure, you can return the defective product to us, we will repair it and resend it to you in one week. If the defective product can't be repaired, we will send you a new one for replacement, free of charge.
4. Please note that man-made damage is out the scope of free warranty.
5. After the two year of free warranty, we will charge you the factory cost for the replaced accessories, free for maintenance.
6. If your order comes to a certain quantity, we will provide you some spare units, for replacing the defective product. The number of spare units depends on the quantity of your order and the model of the products.
7. Pls feel free to contact our customer service team. After receipt of your complaint feedback, we will appoint the qualified person to contact you within 12 hours and solve your complaint.
>>
