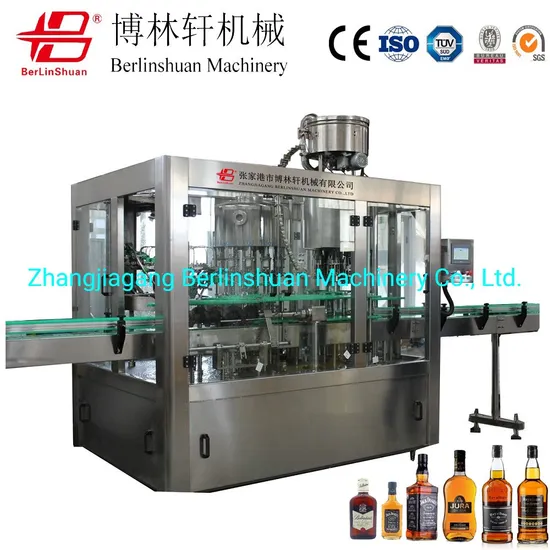

(4000-6000BPH) Full Automatic Glass Bottle Aluminum Caps Alcohol Drink Whisky Vodka Washing Filling Capping Machine

Product Description

Glass bottle/ Aluminum Bottle Aluminum Cap Automatic Filling Machine
Rinsing Filling and Sealing 3 in 1
Whisky/Wine/Vodka Automatic Rinsing Filling and Sealing Machine/ System is based on advanced technology overseas and designed according to the filling processing demands of wine, vodka, whisky etc.
Working process
Adopting the bottle bottom holding type to send bottles into filling machine through bottle inlet screw via thrum bottle star wheel, and then the bottles will be held by lifting device, and achieve up and down under the function of lifting cam and down pressure cam. The filling model is precisely filling. After bottle mouth raises to contact valve and open valve, then starting to filling; When finish filling, the bottle mouth falls and leaves valve, also bottle is leading-out filling machine by bottle holding type, and conveyed to convey Chain by thrum bottle star wheel.
Application:
The series equipment is used for glass bottle/aluminum bottle rinsing/ filling/ sealing 3-in-1 unit machine for wine and alcohol drink. And the capping part can be manufactured with crown cap/ screw cap.
The machine integrates washing, filling, capping together. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient. The automation is high. It is good equipment for choosing hot drink filling machine.
This series machine is adopt block bottle-neck hanging work state design, and be adopt filling valve rise-drop design, It's be satisfy for 95 degree hereinafter hot filling technology demand. It's adopted person-machine interface touch-screen, PLC, transducer etc advanced control technology. It's osculate the drink material parts are adopt the SUS304 stainless steel, The machine main motor, reducer, mostly axletree, pressurize parts and electricity ware element, gas drive element etc are adopt famous international manufacturer products.
Project Description:

Project Name: Complete Glass bottle/ aluminum bottle hard liquor / Juice/ Whisky / Vodka Automatic Filling Machine Rinsing Filling and Sealing Machine 3 in 1
Bottle and caps	Shape	Bottle volume	Bottle size	Liquid material	Filling Capacity
Glass bottle Crown caps	Round, squire and flat oval	250ml, 350ml, 500ml, 640ml, 750ml,1500ml	Diameter ≤105mm Height≤350mm	hard liquor / juice/ Whisky / Vodka	2000-10000BPH@500ml
Rinsing pressure	Filling type	Filling temprature	Filling pressure	Caps loading and feeding	Machine material
0.25-0.3MPA	Pressure filling	15-55ºC	0.15-0.5MPA	Automatic	SUS304/316
Auxiliary Equipment
Bottle warming	Labeling	Date printer	Packing	Ambient Conditions	Electrical Supply
Spray warming tunnel	Paper label Adhesive sticker Label	Ink-jet printer Laser printer	PE Film packing Carton packing	Temperature:10~25ºC; Humidity:No dew	380V, 50/60Hz, 3phase Other power: 110V, 220V, 415V, 440V, 450V

Main Technical parameters:

Model	BCGF12126	BCGF18186	BCGF24248	BCGF323210
Heads of washing, filling , sealing	12-12-6	18-18-6	24-24-8	32-32-10
Production capacity(bottle/hour)	2000-3000BPH (500ml)	4000-6000BPH (500ml)	8000-10000BPH (500ml)	12000-15000BPH(500ml)
Suitable bottle diameter(mm)	φ=50-100 H=170 330-1500ml
Spraying pressure	2~3 Mpa
Motor power Main motor	3.5kw	4.5kw	5.5kw	7.5kw
Overall dimension(LxWxH)	2200x1800x2200mm	2400x2000x2200mm	2800x2200x2200mm	3200x2400x2200mm
Weight	2500kg	3500kg	4500kg	6500kg
Touch screen	Mitsubishi(Japan)/Willen(Taiwan)/Siemens(Germany)
PLC	Mitsubishi(Japan)
Transducer	Mitsubishi(Japan)/Siemens(Germany)
Solenoid Valve	Festo (Germany)
Contactor	Schneider (France)/Siemens(Germany)
Electronic Control Keys	Mitsubishi(Japan)/Siemens(Germany)
Air-actuated component	Airtac (Taiwan)

Features:
1) The machine has compact structure, complete control system, easy operation and high degree of automation.
2) The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
3) The parts contacting media are made of 304L and have no process blind angles to enable easy cleaning.
4) High speed filling valve, guarantees liquid has precise level and no waste is incurred.
5) The capping head applies a constant magnetic torque device to secure capping quality and prevent damage to the bottle cap.
6) The control system has the function of control producing speed, cap shortage detection, bottle block auto stop and production counting.
7) The advanced programmed controller (PLC) is adopted to control the machine to run automatically.
8) The machine is equipped with a complete overload protection device that can secure equipment and the operator effectively.
9) Main electric components and pneumatic components are used the world famous brand products.
10) The machine's operation is controlled by an advanced touch-screen that can fulfill human-machine communication.

---
