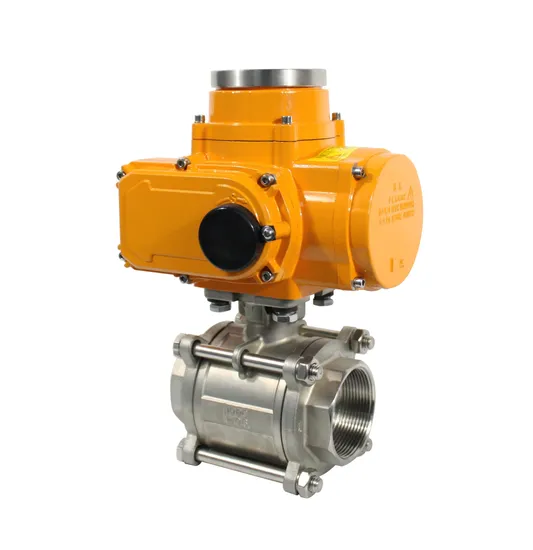

Stainless Steel Three Piece Electric Threaded Ball Valve DN20

Product Description

•Direct mount ISO5211 Full Port stainless steel ball valve • 3-piece swing out body designed for easy maintenance • 1000 PSI working pressure at 100°F (38°C) • Visual valve position indicator • Heavy duty motors with overload protection • Thermostatically controlled anti-condensation heater • Manual override with end of travel mechanical stops • Two auxiliary limit switches included with on-o ffunits

Specification and model			H	L
mm	in
DN20	3/4"	SQ-05	196	85
DN25	1"		200	90
DN32	1 1/4"		210	112
DN40	1 1/2"	SQ-10	231	120
DN50	2"		252	145
DN65	2 1/2"	SQ-20	261	170
DN80	3"		332	200
DN100	4"	SQ-60	387	263

Product Overview:
The electric threaded ball valve adopts an integrated structure, which is matched with SQ electric actuator. It can operate by inputting (4-20mADC, 0-10VDC or 1-5V) signal or single-phase power supply. It has the characteristics of strong function, small size, lightweight and pleasant, reliable performance, simple matching, and large circulation capacity. At present, this valve is widely used in industrial automation control systems in industries such as food, environmental protection, light industry, petroleum, papermaking, chemical engineering, teaching and research equipment, and power.

---
