Anodizing Coating Flat Plate Solar Collector

Product Description

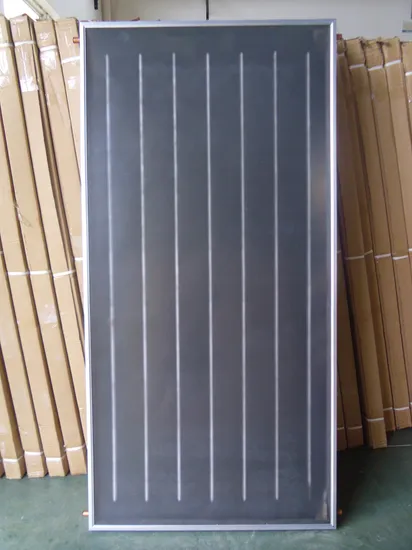

Flat Panel Solar Collector

Specifications	Dimension(mm)	2000*1060*70mm / 2000*1060*80mm /
	Aperture area	2 m2
	Net Weight	31kg / 32kg / accordingly
Cover Sheet	Glass Material	Float /tempered / tempered woven / low-iron tempered woven glass
	Thickness	Low-iron tempered woven 3.2mm, other three 4mm
	Transmission	87%~91%
Absorber	Core Material	Copper & aluminum
	Coating	Anodizing
	Efficiency	Absorptivity ≥95%, emissivity ≤20%
	Absorber Plate	Copper & aluminum, δ=0.45mm
	Header Tube	All copper T2, Φ25*0.6*1060mm, 2pcs
	Riser Tube	Copper & aluminum, Φ14*0.45mm, 7pcs
	Jointing	Composite technology
Insulation	Materials	Glass wool+ benzene plate/glass wool+ high dense polyurethane foam
	Thickness	30mm / 40mm / 50mm thickness accordingly
Casing	Material	Zincification plate 0.3mm / embossed aluminum back sheet 0.3mm
	Sealing	Metal elasticity proof, anti-aging seal
Working Pressure	3 bar
Work Temperature	(-)35~180oC

Description:
Flat plate solar collector is a device that absorbs solar energy from the sun and converts it into usable heat energy, the heat is normally absorbed by water in the loop, or a freeze-resistant water mixture, a kind of medium used to supplement hot water heating or house air heating.

1. Suitable for domestic, dormitories, parks, hotels, schools, public showers, swimming pools, restaurants and other sites requiring for large hot water use
2. The panel is of high efficiency and good performance
3. Suitable for open or closed Loop (glycol-water)
4. Suggest this type of solar collector for warm areas, for extremely cold
5.mounted on different building structure
Working Principle
The selective coating on the inner cover of the evacuated tubes converts solar energy into heat energy and water in evacuated tubes the heat. When temperature rises along with density drops, and weight goes down, hot water will go up to exchange with cold water in tank. In this way, the temperature of the water in tank goes up.

---
