High-Precision CNC Machining Center CNC Vertical Five-Axis Milling Machine for Automobile Parts Processing

Product Description

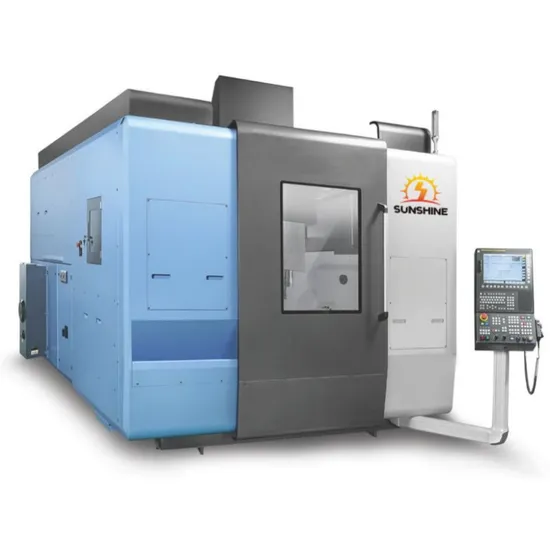

DMC800
High-precision CNC machining center CNC vertical five-axis milling machine for automobile parts processing
Application Areas
Processing range
Five-axis machining centers are widely used in aerospace, automobile manufacturing, mold manufacturing, medical equipment, machinery manufacturing and other fields, as well as automobile molds, automobile wheels, engine cylinder blocks, blades, automobile cylinder heads, accessory molds and other automobile parts, aerospace, wind power and other precision industries.
Product Parameters

Specification	unit	CMC500f	CMC650U	DMC800U
working desk size	mm	Φ630×500	Φ650×540	Φ800
Workbench T-slot	mm	14	14	14
Center hole of workbench	mm	Φ30	Φ50	Φ50
Maximum load-bearing capacity of workbench	kg	200	300	1200
X-axis travel	mm	550	650	850
Y-axis travel	mm	450	520	850
Z-axis travel	mm	400	475	600
A-axis rotation range	º	-	±120	±120
B-axis rotation range	º	-5/110	-	-
C-axis rotation range	º	360	360	360
Distance from spindle end to worktable	mm	150-550	150-625	150-750
Spindle taper	--	BBT40	BBT40	HSK-A63
Spindle maximum speed	rpm	10000	12000	14000
Spindle power	kw	7.5	7.5	25
Spindle torque	N.M	35.8/70	45	91.7
Tool magazine type	--	Disc	Disc	Horizontal chain type
Tool magazine capacity		24	24	30
Maximum tool diameter (full tool/adjacent tool)	mm	Φ78/Φ150	Φ78/Φ150	Φ78/Φ150
Maximum tool length	mm	300	300	300
Maximum tool weight	kg	8	8	8
Tool change time (T-T)	s	1.55	1.55	2
Rapid moving speed (X/Y/Z)	mm/min	42000/42000/42000	42000/42000/42000	32000/32000/32000
Cutting feed speed (X/Y/Z)	mm/min	1-10000/1-10000/1-10000	1-10000/1-10000/1-10000	1-10000/1-10000/1-10000
Positioning accuracy (X/Y/Z)	mm	0.005/300JIS	0.005/300JIS	0.005/300JIS
Positioning accuracy (A/C)	"	-	±5	±5
Positioning accuracy (B/C)	"	±5	-	-
Repeatability (X/Y/Z)	mm	±0.003JIS	±0.003JIS	±0.003JIS
Repeatability (A/C)	"	-	4	4
Repeatability (B/C)	"	4	-	-
Machine weight	kg	6500	8500	18000
Machine dimensions	mm	3500×3400×2700	3970×3210×2800	5500×4000×3500

Configuration
Optional Accessories:
1. Automatic chip conveyor & chip bucket (Chain type)
2. Automatic chip conveyor & chip bucket (Screw type)
3. Spindle direct driven, speed 12000 rpm
4. Spindle oil cooling
5. Spindle center water spray
6. 24 tools disc type
7. Nitrogen balance cylinder
8. Air conditioner for electricity cabinet
9. 3th Axis, 4th Axis or 5th Axis
Detailed Photos

Built-in electric spindle
The electric spindle has good dynamic response performance and can quickly adjust the speed and torque according to processing requirements. This fast response capability is essential for realizing complex five-axis linkage processing, which can ensure the relative movement between the tool and the workpiece is accurate.
Tilt flip worktable
The tilt flip worktable is designed to realize 5-axis linkage processing function and can process a variety of products.
The A axis of the worktable is an integral embedded design of Ligui. In particular, when fixing the worktable, the special process of injecting the gap between Ligui and the worktable is used to absorb the vibration generated by the joint and the column.
Tool Magazine
The tool magazine of the five-axis machining center can accommodate many different types of tools, including milling cutters, drills, tapping tools, etc., to meet the needs of different processing tasks. According to the processing requirements, the tool magazine can automatically select the appropriate tool for processing without manual intervention, which greatly improves the processing efficiency and flexibility.
CNC system

By controlling advanced surface processing actions, it can shorten processing time and improve productivity. The programmable and diversified programs and standard setting functions are easy to operate, and the processing angle and posture can be adjusted in real time to ensure the accuracy and stability of the processing process. By clamping multiple surfaces at a time, the number of tool and fixture changes is reduced, thereby improving processing efficiency.
Our Advantages
Packing & Delivery
Company Profile


Shandong Sunshine Machinery Co., Ltd. is a manufacturing enterprise integrating development, research, manufacturing, sales and service. It has many years of experience in CNC lathe manufacturing, years of quality insistence, years of dedicated struggle and professional manufacturing. The company's main products include: vertical machining center, horizontal machining center, five-axis machining center, CNC vertical lathe, CNC inclined lathe, hydraulic press, sawing machine and other equipment, which can meet the needs of automobile, engineering machinery, agricultural machinery, petroleum, shipbuilding, aerospace, hardware mold and other industries, and provide integrated production solutions and services for users in different industries. Our products are exported overseas.
Our company has a group of experienced professional mechanical engineering designers, precision processing equipment, exquisite processing technology and modern management mode, which lays a solid foundation for the production of high-quality products. At the same time, continuous technological innovation, more and more products, complete models, to create a reliable and practical mechanical equipment for you.
Shandong Sunshine Machinery Co., Ltd. has a complete product quality assurance system and after-sales service, consistently puts product quality and user needs in the first place, adheres to the principle of good reputation and user satisfaction, and provides high-quality services to our customers. FAQ
Q1: Can we install and debug overseas?
A: Yes, we will arrive at the customer's site as soon as possible to install and debug.
Q2: Which countries have your equipment been exported to?
A: Our products are exported to many countries and regions including Russia, Australia, Vietnam, India, Algeria, Bangladesh, Saudi Arabia, Nigeria, South Africa, etc.
Q3: Are you a manufactuer or trading company?
A: We are manufacturers.
Q4: Are you in stock?
A: It is in stock, depending on which model of equipment you choose.
Q5: Can it be customized for us upon request?
A: Yes, we have a professional technical team to meet your needs.
Q6: What about the lead time for mass production?
A: The time will be determined according to the quantity of the specific ordered products.
Q7: How long will it take to ship?
A: About 30-60 days, the specific time is subject to the actual situation.
Q8: Packaging & Shipping:
A: Packed in wooden cases and transported by shipping.
Q9: What field is the product used in?
A: The company's products are widely used in processing fields such as automobiles, aerospace, molds, and machinery manufacturing.
Q10: About the price?
A: All products are sold directly by the manufacturer. They are produced in our own factory, eliminating the middlemen and are delivered directly to customers. The quality is guaranteed and the specific price is subject to the actual quotation.

---
