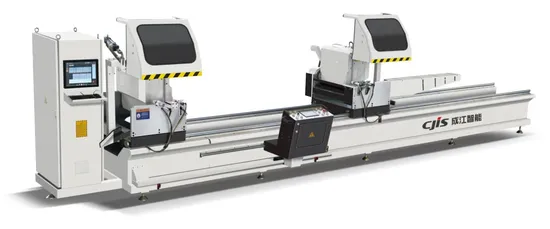

Aluminum Profile CNC Double-Head Precision (Any Angle) Cutting Saw

Product Description

Product Description
1,Suitable for adjusting cutting angles between 45° and 157.5° for industrial aluminum profiles, thermal break aluminum doors and windows, and curtain wall profiles. The CNC control system can achieve advanced functions such as optimized cutting of profiles.
2,The whole machine adopts European models, with a neat appearance and grand style.
3,Directly connected saw blade with imported motor.
4,Saw blade feed using pneumatic-hydraulic damping cylinder transmission for stable cutting.
5,High-precision imported cutting saw blade for smooth cutting section.
6,Imported servo motor with reducer.
7,Can input the dimensions of multiple profiles to be cut at once, enabling continuous cutting of different lengths.
8,Direct input of processing dimensions without the need to return to reference points when changing cutting lengths. The worktable is equipped with a saw blade sealing device for effective chip removal.
9,Equipped with a follow-up opening and closing saw cover for safety and reliability in a good working environment.
10,Each machine head has two air cylinder clamps to secure the profiles for safe and reliable cutting.
Detailed Photos

Product Parameters

Input power supply:	380V/50Hz
Saw cutting motor:	2×3.0kW
Motor speed:	2,800r/min
Servo motor:	2×1.0kW+1×1.5kW 4,050r/min
Working air pressure:	0.5~0.8MPa
Air consumption:	60L/min
Saw blade specifications:	Ф600×Ф30×4.4 Z=144
Feeding speed:	0~3m/min
Machine head movement speed range:	0~20m/min
Saw cutting length:	Maximum 6,000mm Minimum 360mm at 90° Maximum 6,000mm Minimum 760mm at 45° Plus two profile heights
Cutting width:	200mm
Cutting height:	270mm
Saw cutting angle:	45° to 157.5° any angl
Repeated fixed-length error:	±0.2mm
Dimensions:	7,800×1,500×2,040mm
Weight:	Approximately 2,500kg

Company Profile
Shandong Chengjiang CNC Technology Co., Ltd is a high-end intelligent equipment manufacturing company that integrates research, production, and sales. We specialize in the research, development, manufacturing, and sales of intelligent industrial aluminum processing equipment, aluminum door and window equipment, aluminum curtain wall equipment, and plastic door and window equipment. Our outstanding research and development team and professional technical staff have laid a solid foundation to ensure the production of high-quality equipment. Chengjiang is dedicated to creating the most advanced door, window, and curtain wall processing equipment in China.

Our Advantages

Shandong Chengjiang CNC Technology Co., Ltd. is a door and window processing equipment company integrating industry and trade. Has the following advantages:
1. It has a casting workshop and an assembly workshop and can accept product customization.
Our company's equipment processing has a complete production line, from the processing of raw materials to the polishing, casting and painting of parts, all are carried out in the foundry workshop. After the parts are processed, they are transported to the assembly workshop for assembly and debugging. We have many years of experience in door and window equipment processing. Our company can accept customization requirements with different technical conditions and can customize production according to customer needs, including equipment length, equipment parameters, equipment color, etc.
2. Reduce costs, increase efficiency, and control quality.
The integration of industry and trade can integrate production and sales links, optimize the supply chain, reduce costs, and improve efficiency. Since the production and sales links are within the same company, product quality can be better controlled to ensure that products meet standards.
3. Professional technical R&D team with multiple patents.
The company has established a professional technical R&D team of more than 10 people, specializing in product R&D and improvement, and has multiple invention patents and its own intellectual property rights. And the technical personnel responsible for processing and assembly all have more than 10 years of work experience and strictly control product quality.
After Sales Service
Pre-sale service
Free contact for the most suitable machine
Free professional design for each customer especially. After sale service 24 hours technical support by phone, email or skype
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
FAQ
1.Are your company a trading one or a factory?
Factory + trade (integration), 14 years' focusing on Upvc,Aluminum Window and Doors Equipment and curtain wall equipment.
2.After an order is placed, when to deliver?
Generally about 15 days, If we have inventory, we can arrange shipment within 5 days.
Please be aware that our production lead times depend on specific items and item quantities.

3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to solve your problem freely;
After the warranty,the professional after-sale service team will provide perfect technical support,and help customers solve problems ,encountered while using our products.Handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each machine must be carried out 100% quality examination and test before shipment.
And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?
We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.

---
