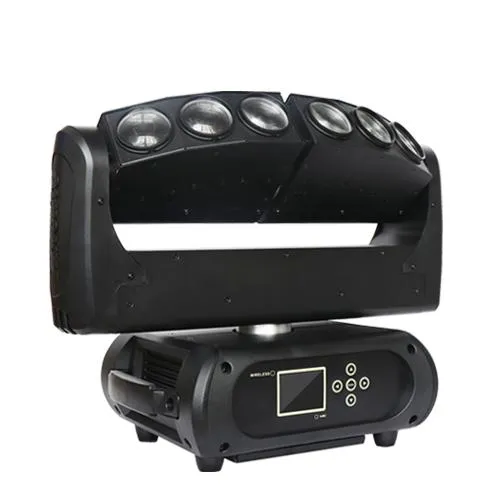

6*20W RGBW 4in1 LED Beam Moving Head Pixel Control Professional Stage and Bar Effect Lighting
US$350.00
12 Pieces
(MOQ)
Basic Info.
Model NO.
BEAM 620 RGBW
Emitting Color
RGBW
Control Channel
16/43/15/18 CH
Strobe
Electronic Strobe
Control Mode
Dmx Signal Control
IP Rating
IP20
Certification
CE, RoHS
Voltage
100-240V
Beam Angle
2.5
Net Weight
10 Kg
Transport Package
Carton or Flight Case
Specification
375x468x250 mm
Trademark
ABLELITE
Origin
China
HS Code
9405499000
Production Capacity
3500PCS Per Month
Product Description
Type:LED BEAM MOVING HEAD Source: • Light source: 6*20W rgbw 4in 1 leds • Led life: 60.000 hours •Luminous Flux: 5100lux@2.5m@red 10600ux@2.5m@green 2010lux@2.5m@blue 14020lux@2.5m@white •Control: Remote on/off via DMX • Ballast: switching mode power supply
Optical System: •Beam angle:2.5°
X/Y: • Pan:630° (2.8 sec) or 540° (2.0 sec),Tilt 265° (1.8 sec) •Creative design for two tilt rotation heads •16-bit resolution •Auto repositioning
Colors: • Beautiful color changing and chase effect
Features : • DMX channels:16/43/15/18 • Full range 0-100% dimmer • Beautiful color chase effect for RGBW leds • Pixel control on every single color • Separate control of two heads • Various strobe • RDM function to change DMX address, display flip, X/YReverse and so on • Software upgrade via DMX • Hibernation when lost DMX for preset time • Indicate temperature info of base,led • Fan speed auto change according to temperature Display: • 2.4inch super nice LCD display with friendly English/Chinese/French/Spanish menu • Auto lock • Flip • Back-up communicating IC
Power: • Max power consumption: 164W • Powercon in and out,3-pins DMX • Power supply: Electronic auto-ranging • Input voltage range: 100-240V, 50-60Hz
