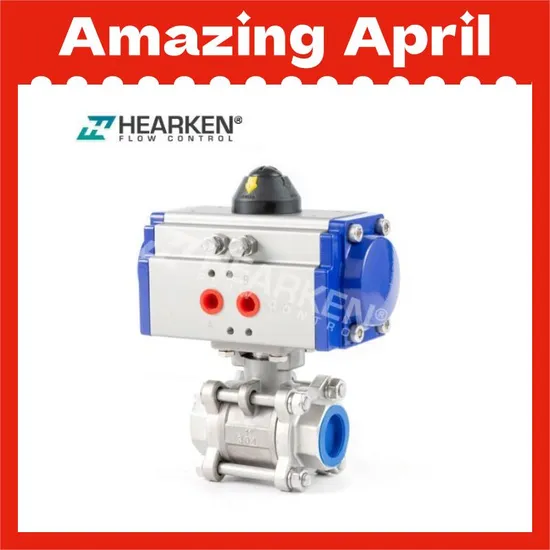

ANSI/JIS/DIN Pneumatic Actuator/Threaded Stainless Steel 3PCS Pneumatic Actuated Ball Valve

Product Description

Description
3pcs Pneumatic stainless steel ball valve switch is light, small in size, can be made into large diameter, reliable sealing, simple structure, convenient maintenance, sealing surface and spherical surface are often closed, not easy to be eroded by medium, and are widely used in various industries.
Technical Specification 1.Design andmanufacture as per API 608.
2.End to end dimension be established by the manufacturer.
3.Thread end dimension as per ASME B1.20.1.
4.Test & inspection as per API 598.

Main Technical Parameter
Normal Pressure		1000	Psi
Test Pressure	Shell test pressure	10.5
	Tightmess test	7.7	Mpa
	Gas-Tightness test	0.6
Max working temperature		-20~150	°C
Applicable medium:water,gas,oil,acid

No.	Part Name	Material
1	Bolt	B8M-CL2
2	Nut	8M
3	End Connector	CF8/CF8M
4	Body	CF8/CF8M
5	Ball	304
6	Sealing Ring	PTFE/RPTFE/PPL
7	Gasket	PTFE
8	Stem	304
9	Stem Packing	PTFE/RPTFE/PPL
10	Gland	VF8
11	Bolt	B8M
12	Nut	8M
13	Actuator	Aluminium Alloy

DNSizedLΦKPH

DN	Size	d	L	ΦK	P	H	H1	Torque N.m
15	1/2"	15	67	50	9	50	10	6
20	3/4"	20	78	50	9	55	10	8
25	1"	25	87	50	11	55	12	10
32	1 1/4"	32	100	50	11	67	12	12
40	1 1/2"	38	110	70	14	78	15	20
50	2"	49	130	70	14	83	15	28
65	2 1/2"	65	167	102	17	115	18	33
80	2 1/2"	78	200	102	17	130	18	51
100	4"	100	240	102	19	150	20	66

H1Torqu
1. Question:What is your main products? Answer:Our main products are Pneumatic Actuators, Electric Actuators, Actuated Valves And Valve actuators Accessories..
2. Question:Are you a trader or manufacturer ? Answer: We are the pneumatic actuators and electric actuators manufacturer , we have ability to do the customization products with experienced team, And we have own factory and production line.
3. Question:How do your make the quality guarantee for actuators? Answer:We have our own quality control system for incoming and outgoing of the materials, every product will be under controlled and tested before delivery to our customer , and we also provide 18 months guarantee ,beside we provide technical supporting .
4. Question:When can I receive the Price of valve actuators ? Answer:We will give the Quotation Within 24 hours after we get your inquiry .Or Your can call or message us if it's quite urgently.
5. Question:How to order our pneumatic actuators and electric actuators ? Answer:Please send us your inquiry by Email, whatsapp, wechat etc. we need to know the following informations before giving the formal Quotation.
1) Product information in details, Quantity, Other requirements
2) Delivery time required
6. Question:How can I get a sample to check your quality? Answer:Contact with our sales expert to arrange the sample delivery. Please send us the details of the sample before placing the order.
7. Question:Shall we pay the sample cost and transportation cost ? Answer:We will provide the sample by free of charge. Your will bear the freight cost.
8. Question:How long to prepare the sample ? Answer:Most of our products are under regular production and some of them we keep in stocks.
9. Question:How to delivery the sample to our place? Answer:Your can provide your forwarders contacts if any, or we will arrange it for you.
10. Question:What about the delivery date if we place the formal order ? Answer:Usually it takes 15~20days on the production .We know that on-time delivery is very crucial to our customers to meet dead-lines.
We monitor and expedite our supply chain to ensure that we delivery our products to our customers on-time all the time.

---
