Product Description
Product Description

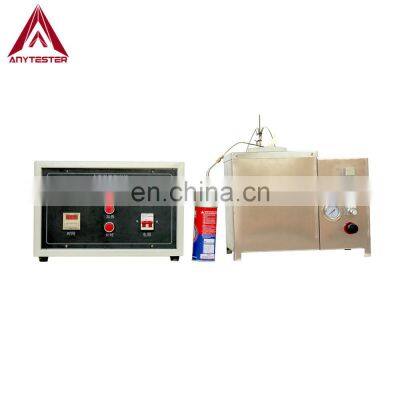

Product DescriptionHY0871 Ignition temperature tester is used to test the combustion and flame retardant properties of plastic materials. In the heating chamber of a hot air furnace, the samples are heated at different temperatures and the escaping gas is ignited directly by a small flame in the opening above the furnace to determine the flashover temperature. The auto-ignition temperature is determined in the same way as the flash-over temperature, but no flame is applied.StandardISO 871GB 4610Details & FeaturesModelHY0871Furnace tubeinner diameter 100mm±5mm, length 240mm±20mm；Made of custom ceramic tubes with a temperature resistance of not less than 750°CInner ceramic tubeCapable of withstanding at least 750℃, inner diameter 75mm±2mm, length 240mm±20mmThe temperature in the furnaceCan be constant at any temperature between (150-750) ℃Time range0～999.9S, settableFlame height10mm to 20mm, adjustableThermocouples3 thermocouples and temperature meters to detect the temperature in the furnace and the temperature of the sampleTemperature control accuracy±2℃Display accuracy±0.5℃Test furnace size400×250×300mmController size430×350×280mmPower supplyAC220V±10%, 50HzPower2500WWeight15kgSpecificationOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
