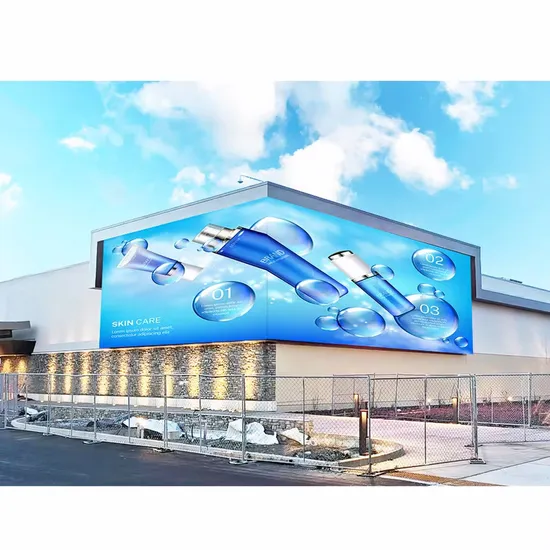

10000 Nits Ultra High Brightness Waterproof Outdoor Aluminum Advertising LED Screen Display Digital Billboard Signage Board Sign

Product Description

Product Parameters Screen size options: Choose from versatile dimensions like 960x960mm or request a tailored size to perfectly fit your unique requirements.

Parameters	A5	A6	A8	A10
Pixel Configuration	SMD2727	SMD2727	SMD3535	SMD3535
Pixel Pitch(mm	5.7	6.67	8	10
Pixel Density(dots /m²)	28224	22500	15625	10000
Module Size(L x W x H)/(mm)	480x320	480x320	480x320	480x320
Panel Size(L x W x H)/( mm)	960x960x75	960x960x75	960x960x75	960x960x75
Panel Material	Aluminum	Aluminum	Aluminum	Aluminum
Panel Weight(kg/m2)	28	28	28	28
Color Depth(Bit)	16	16	16	16
Gray Level	65536	65536	65536	65536
Refresh Rate(Hz)	3840	3840	3840	3840
Driver Method	1/7	1/5	1/3	1/2
Brightness	5500-7500	6000-10,000	6000-10,000	6000-10,000
Viewing Angle(H/V°)	140/140	140/140	140/140	140/140
AC Power Input(V)	AC100--240V±10%/50~60Hz	AC100--240V±10%/50~60Hz	AC100--240V±10%/50~60Hz	AC100--240V±10%/50~60Hz
AC Power Frequency(Hz)	50/60	50/60	50/60	50/60
Max. AC Power Input (W/m²)	550	550	550	550
Avg. AC Power Input (W/m²)	170	170	170	170
Storage Temperature	-40~60	-40~60	-40~60	-40~60
Working Temperature	-20~50	-20~50	-20~50	-20~50
IP Rating	IP66	IP66	IP66	IP66
Life Span(hours)	100000	100000	100000	100000
Installation & Maintenance	Front&Rear	Front&Rear	Front&Rear	Front & Rear

Packaging & Shipping Experience hassle-free multimodal transport with estimated shipping fees starting at just $107.86 for a single piece, and enjoy delivery within 25 to 35 business days. *Please note that shipping costs provided are preliminary estimates for your convenience. We recommend reaching out to the supplier for a precise final quote tailored to your order. After Sales Service Secure your transactions with Made In China thanks to robust SSL encryption and PCI DSS data protection standards. Enjoy peace of mind with our Easy Return & Refund policy, where you can easily claim a refund if your order is missing or has product issues, along with complimentary local returns for defects on eligible purchases Made In China diligently safeguards all orders processed and paid through our platform.Company Profile Shenzhen Infipixel Group Co., Ltd. stands as a custom manufacturer with over 8 years of expertise, proudly representing CN.

---
