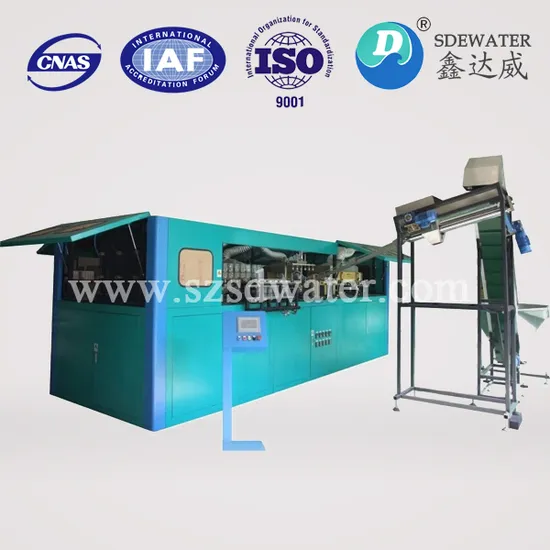

Bottle Blow Molding Machine (SD 2000-6)

Product Description

Bottle Blow Molding Machine (SD 2000-6)
Product Description:
(1) Plastic Machine Function and characteristics

1. The blow molding machine is full automatic and has fast high effcientcy feeding system, adopting the sart wheel in the inverter motor to load embyro, to save the source.
2. Energy saving and high efficiency semi open style heating system can save more than 30%comparing with the same line.

3. Adopting Double Crank Arm Mechanical Sealing Mould, Bottle Die Likage Structure, matching with high pressure compensation sealing mould, to solve the problem of expanded mould and wide mould joint line.

4. Aopting Uk Norgren High Pressure Combination valve, big flowing, fast reaction, to improve unit production and save energy.
5. Standard Fittings Supply System to ensure the equipment run steadily and reduce the maintenance cost.
6. MMI design, Linear Structure, Simple Opration, Convenient and Fast Changing Mould.

7. Auto off Loading Bottle System, can be connected with conveyor(vacuum pipe)automaticly, matching with filling system.
Technical Parameter

Clamping mould system	Model	SD2000-6
	Clamping force(Kg/f)	60000
	Clamping stroke(mm)	120
	Clamping stroke(mm)	240
	Bottom mould stroke(mm)	30
	Cavity pitch(mm)	76.2
Bottle parameter	Cavities Quantity(cavities)	4
	Max.container volume	0.6
	Max.neck diameter(mm)	38
	Max.container diameter(mm)	68
	Max.container height(mm)	260
	Carriage unit (pcs)	76
Electronical system	Theortical output(pcs/h)	4000-5000
	Perature increasement part(group)	4
	Levels quantity of infraed lamps(level)	8
	Total Power(Kw)	41
	Heating power(Kw)	38
Air comprosser system	Operating pressure(kgf/cm²)	8
	Low pressure Air consuming(ltr/mim)	1500
	Blowing pressure(kgf/cm²)	35
	High pressure air consuming(ltr/mim)	6000
Freeze drier system	Operating pressure(kgf/cm²)	2-4
	Temperature(°C)	10-12
	consuming(Kcal/hr)	7600
	Flow rate(ltr/mim)	45
Water Chiller system	Operating pressure(kgf/cm²)	2-4
	Temperature(°C)	25
	consuming(Kcal/hr)	45000
	Flow rate(ltr/mim)	150
Machine dimension	Size(L*W*H)(mm)	2900*2150*2000
	Weight (ton)	4.5

---
