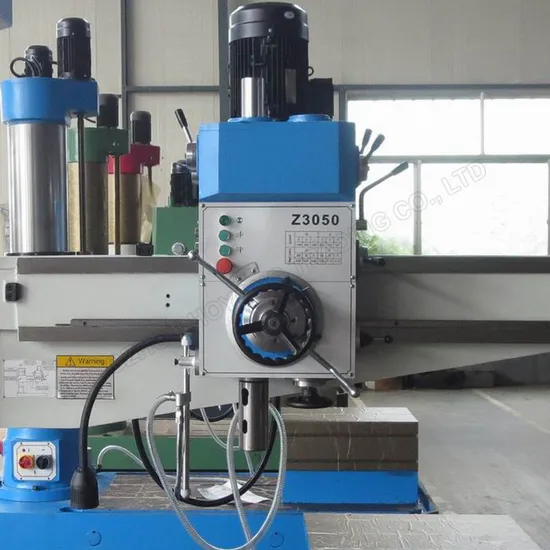

Hydraulic Radial Drilling Machine Vertical Driller Z3050 Z3050X11 Z3050X16 Z3050X16/I Z3050X16/II

Product Description

RADIAL DRILLING MACHINE FEATURES:
1.The main key pieces of high strength cast iron and special steel.
2.By the specialized equipment to ensure continuous processing, sophisticated infrastructure components.
3.Spindle positive, parking ( brake ), transmission, free action, with a handle control, operate more conveniently and quickly.
4.Rocker guide rail, the outer column surface, spindle, spindle sleeve and the inner and outer column rotary raceway are conducted quenching treatment,
can maintain the stability of machine tool accuracy, prolongs the service life.
5.Have good safety protection device and the outer column protection.
6.The structure design and in the manufacturing process, but also adopted a series of effective measures, so that the precision of the machine tool durability
and the service life of the whole machine are enlarging.
7.The new coating technology and the continuous improvement of appearance display style of the times.

SPECIFICATION	UNITS	Z3050×16
Max. drilling diameter	mm	50
Distance between spindle axis and column	mm	350-1600
Distance spindle nose and work surface of base	mm	320-1220
Rocker arm lifting distance	mm	580
Rocker arm lifting speed	m/s	0.02
Spindle travel	mm	315
Spindle taper	Morse	5
Range of spindle speeds	r/min	25-2000
Number of spindle speeds	step	16
Range of spindle feeds	mm/r	0.04-3.20
Number of spindle feeds	step	16
The maximum torque of the spindle	N.M	500
Spindle maximum feed resistance	N	18000
Table size	mm	630×500
The spindle box of horizontal moving distance	mm	1250
Spindle motor power	kw	4
Hydraulic clamping motor power	kw	0.75
Cooling pump motor power	kw	0.09
Arm lift motor power	kw	1.5
Machine weight	kg	3500
Overall dimension	mm	2500x1070x2840

---
