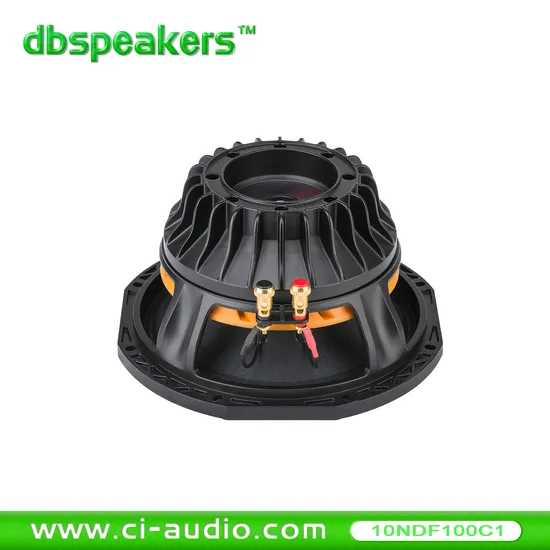

Professional Speaker 10′ ′ Neodymium 1200watt Line Array Speaker.

Product Description

Professional Speaker 10''Neodymium 1200Watt Line Array Speaker. 4 INCH COPPER VOICE COIL 97.9 dB/SPL SENSITIVITY 1200 WATT PROGRAM POWER HANDING FEM OPTIMIZED MOTOR AND SUSPENSIONS OPTIMIZED COOLING SYSTEM DOUBLE SPIDER RESONANCE FREE AND HEAVY DUTY BASKET DESIGN DUAL GAP MOTORS LINEARIZE INDUCTANCE IDEAL FOR TWO-WAYS AND LINE ARRAY APPLICATION GENERAL SPECIFICATIONS

Nominal diameter	mm (in.)	260(10)
Nominal impedance	Ω	8
Minimum impedance	Ω	6.6
Program power (1)	W	1200
AES Power rating(2)	W	600
Sensitivity (3)	dB	97.9
Frequency range	Hz	54 ~ 3200
Voice coil diameter	mm (in.)	100(4)
Chassis material	Aluminium
Magnet material	Neodymium
Magnet dimensions (ODxIDxh)	mm	97 x 25 x 10
Coil material	ALR
Former material	Glass Fiber
Xmax(4)	mm	7
Xmech(5)	mm	14
Gap height	mm	12 x 2
Voice coil Wingding height	mm	42

SMALL SIGNAL PARAMETERS

DC resistance	Re	Ohm	5.4
Resonance frequency	Fs	Hz	53.7
Moving mass	Mms	g	47
Compliance	Cms	mm/N	0.19
Force factor	BL	N/A	21.4
Mechanical Q-factor	Qms		5.9
Electrical Q-factor	Qes		0.21
Total Q-factor	Qts		0.20
Equivalent air volume	Vas	I	40
Voice coil Inductance	Le	mH	2.9
Diaphragm area	Sd	cm²	380
Reference efficiency	Eta 0	%	2.8

SHIPPING INFORMATION

Net weight	Kg	3.6
Multipack size (1) (W x D x H)	mm	270x270x180
Multipack weight	Kg	4.1

Quality Assurance
Since the raw material sent in untill the speaker sent out, every aspect of them will be fully checked.
We have many advanced test equipments to measure the quality of products. No defectives will be send out.
Our company have a nice quality control managing system(QC) that have strict management of products and staffs.

FAQ
1.Q: Are you a factory or trading company?
A: We are a manufacturer with our own factory ,we have more than 15 years experience.
2.Q: Can you do OEM and ODM?
A: Yes, both. We can put your idea into products.
3. How many days do you need to prepare the goods?
We need about 20-25 working days for large order.

---
