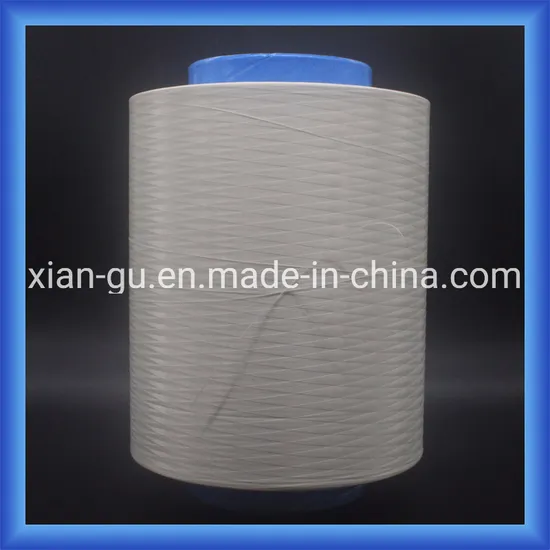

200d Meta-Aramid Filament

Product Description

200D meta-aramid filament is a new high-tech synthetic fiber.This fiber has high strength and modulus, strong hydrogen bonding strength,strength up to 5.2g/d or more,the strength is 1~2 times of steel wire,but the weight is only 1/5 of the steel wire.Continuous using temperature range is extremely wide,long run in the range of -196ºC to 204ºC.No decomposition and melting at 560ºC.Strength can maintain 75% undergo 100 hours at 200ºC.It can resist chemical solvent,acid and alkali,anti-aging,good adhesion to rubber.It is suitable as a reinforcing fiber used in various composite materials,bulletproof products,building materials,special protective clothing,electronics equipment,friction and sealing materials etc.Usually it is used as a protective material,widely used in bullet-proof vests,ballistic helmets,bullet-proof armor,bullet-proof panels.Also as a reinforcing material widely used in rubber,thermoplastics,thermosetting plastics,various high-temperature composite structures,brake pads,clutch linings,friction plate,wear-resistant fillers.
SPECIFICATIONS:

Model:	XGMAF200
Fiber type:	Meta-aramid
Density:	1.47g/cm3
Monofilament linear density:	1.5D/1.67tex
Filament linear density:	200D
Monofilament diameter:	12μm
Monofilament number:	134pcs
Net weight per bobbin:	1kg
Fiber length:	45000m
Specific volume resistance:	5x1015Ω.cm
Moisture:	4%-8%
Tensile strength:	4.2g/D~5.2g/D
Modulus:	50GPa~60GPa
Elongation at break:	18%~29%

STORAGE:
The aramid filament should be keep dry in their original bags and stored in a suitable place,preferably at room temperature with 35-65% relative humidity.Avoid sun, rain and fire.
PACKAGING:
PRODUCT DETAILED IMAGES:

---
