1~2f Optic Fiber Armour Bow-Type Drop Cables

Product Description

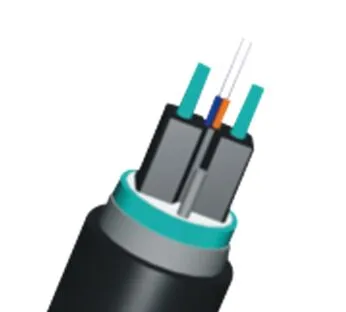

Armour Bow-type Drop Cable


Application
Mainly used in building aerial and duct access cabling.

Features
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients.

Specification

Cable Count	Cable Dimension (mm)	Cable Weight (kg/km)	Tensile (N)		Crush (N/100mm)		Min. Bend Radius (mm)		Range of Temperature (ºC)
			Long Term	Short Term	Long Term	Short Term	Dynamic	Static
1~2	6.8	47	100	200	500	1000	20D	10D	-20~+60

Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. D is outer diameter of the round cable;
3. The minimum bend radius (static) is 5D when G657 fiber is used.

Options
Fiber Type: G652 or G655 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
Jacket Material: Enviromental flame retardant polyvinylchloride (PVC), enviromental low smoke zero halogen flame retardant polyolefin (LSZH), enviromental halogen flame retardant polyolefin (ZRPO), enviromental polyethylene (PE),or other contracted material;
Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.

---
