US$74,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Computerized
Computerized
Certification
CE, ISO9001:2008
Video Outgoing-Inspection
Provided
Plastic Processed
PP, PC, ABS, HDPE, PA, HDPE/PP, ABS/PP, PE/PP
Motor
Servo Energy Saving Motor
Specification
CE standard
Production Capacity
5000sets/Year
Product Description

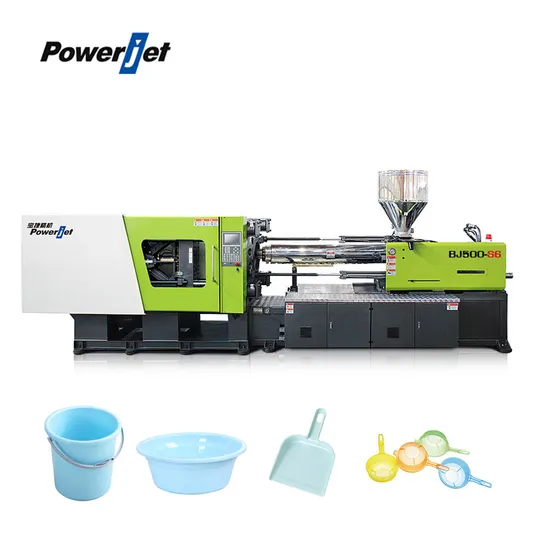

HIGH PRECISION INJECTION MOLDING MACHINE
Powerjet New Series Hydraulic Injection Molding Machine With Faster Injection And Plasticizing Speed, More Stable And Higher Efficiency.
Faster injection speed & charging speed, better stability, higher Efficiency
Clamping Force: 900~10000(KN)
Driving System: Hydraulic
Motor Type: Servo
Applications: Food And Beverage Packaging, Necessities Products, Home Appliances, Electrical Components, Automotive Parts, etc. Product Parameters
Description
| UNIT
| BJ500-V6/S6 |
CLAMPING UNIT
| Clamping force
| KN
| 5000 |
Opening stroke
| mm
| 830 |
Max.datlight
| mm
| 1680 |
Platen size
| mm
| 1150x1120 |
Space between bars
| mm
| 820x780 |
Max.mold height
| mm
| 850 |
Min.mold height
| mm
| 300 |
Ejector stroke
| mm
| 220 |
| Ejector force | KN | 135 |
INJECTION UNIT
| Screw diameter
| mm
| 75
| 83 | 90 | 100 |
Screw L/D Ratio
| L/D
| 21
| 21.8 | 20 | 19 |
Injection Pressure
| MPa
| 204
| 167 | 142 | 115 |
Shot volume
| cm³
| 1722
| 2110 | 2481 | 3063 |
Shot weight (ps)
| g
| 1533
| 1878 | 2208 | 2725 |
oz
| 54
| 66.3 | 77.9 | 96.1 |
Injection rate
| g/s
| 346
| 428 | 480 | 592 |
Screw stroke
| mm
| 390
|
Screw speed
| rpm
| 120 |
POWER UNIT
| Hydraulic system Pressure
| MPa
| 17.5 |
Pump motor power
| KW
| 45/59.7 |
Heater power
| KW
| 28 |
GENERAL
| Dry-cycle time | s | 5.8 |
Oil tank capacity
| L
| 810
|
Machine weight
| T
| 18.5
|
Machine dimensions (L*W*H)
| m
| 8.7x2.1x2.3
|
>>
