Product Details
Product Description
Product Description

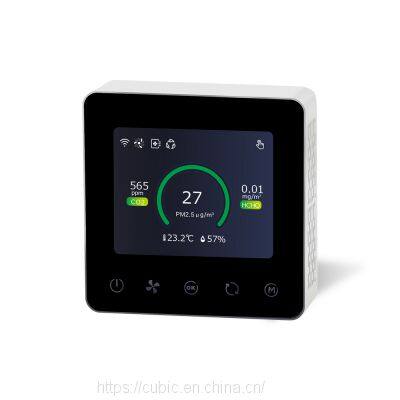

IntroductionWall mount integrated air quality HVAC controller AM6108B is a built-in IAQ sensor module. Users can get the real time data of the air quality, including particle concentration, CO2 level, VOC concentration, temp and humidity. Measuring data can be transferred to the host by RS485 or WiFi, to realize online air quality monitoring. It can be used to control the fan speed automatically to adjust fresh air flow rate, to keep indoor air quality at designed level.
Features1.Real-time particle concentration, VOC, RH&T monitoring
2.UI display for end users
3.Measuring data transfer via WiFi available
4.RS485 control output
5.OEM available
Specifications
| Measurement range | CO2: 0~5000ppm; PM2.5/PM10: 0~5000μg/m³; |
| Temp | -10℃~50℃ |
| RH | 0%~95%RH |
| PM accuracy | PM2.5: ≤100μg/m³; ±10μg/m³, >100μg/m³: ±10% of reading
PM10: ≤100μg/m³; ±25μg/m³, >100μg/m³: ±25% of reading (25℃±2℃, 50±10%RH, GRIMM, Cigarette+Arizona A1) |
| CO2 accuracy | ±(50ppm+5% of reading)@-10~50℃ |
| Temp accuracy | ±1℃ |
| Working temperature | -10℃~50℃,0~95%RH(non-condensing) |
| Storage temperature | -20℃~60℃,0~95%RH(non-condensing) |
| Power supply | DC 12V |
| Dimension | W86*H86*D25(mm) |
