Plastic Sun Shade Net Making Machines Raschel Net Knitting Loom Plastic Shade Net Bag Knitting Machines, Monofilament Extruder Line for Shade Net Fish Net

Product Description

Product Description

We are Zhejiang Tianfeng Plastic Machinery Plant in China. We are profession manufactures PP/HDPE Sun-shade Net Making Machines.
The width of Sun-Shade Net can weave from 2 Meter to 12 Meters.
Product Parameters

Model	JBZ-236	JBZ-217
Needle type	Latch needle	Latch needle
Machine type	E2 E3,E6
Working width of the machine	Max 6 Meter	5.4 Meter
Quantity of carding combs	4/5piece
Control Speed	Inverter
Automatic Stop Service	Weft Broken ,automatic Stop
Warp feeding style	Positve warp feeding by three rollers
Adjustment range of traction density	1.31-14.5coils/cm
Max. winder diameter	1200mm
Capacity	40Meter/Hour
Revolution of main shaft	Max 600RPM
Drive motors	Main motor: 5.5kw Winding motor: 0.8kw
Total weight	10000kg
Overall dimensions(L*W*L)	7200/8200*7000*2400MM

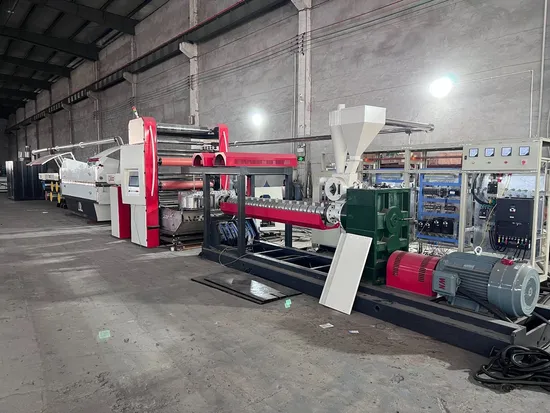

Detailed Photos

esitate contact me if you are interested in our machines.

---
