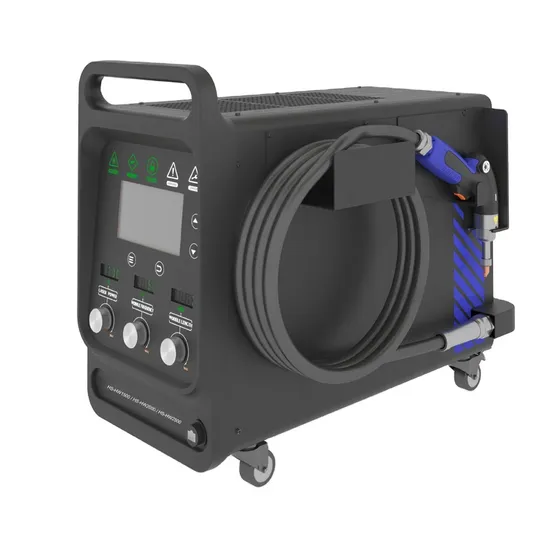

Wholesale Portable Mini Fiber Handheld Laser Welding Machine Case with Wire Feeder

Product Description

Dual circuit refrigerant laser welding machine1200W 1500W 2000W 2500W
1. Experienced MIG and TIG users benefit from the faster, more flexible processing capabilities of fiber handheld laser welders;
2. Easy to learn and operate with the highest process consistency;
3. High-quality welding of thick, thin and reflective metals without distortion, deformation, undercut or burn-through;
4. Welding of dissimilar metal parts of different thicknesses;
5. Very low heat input with minimized heat-affected zone;
6. Minimal grinding or polishing for part setup and post-processing;
7. Increased productivity without machining or straightening of deformed parts.

Item		HS-HW1200	HS-HW1500	HS-HW2000	HS-HW2500
Rated input power supply		Single phase 220V
Input power frequency		50/60HZ
Laser Power		1200W	1500W	2000W	2500W
Guide Beam		Class 1 Red Guide Beam
Laser Type (Welding mode)		Ytterbium Continuous Wave 1070 nm Fiber Laser
Wave length		1080nm
Spot Size		30μm		14μm
Wobble Length		5mm
Cooling		Dual-circuit refrigerant direct cooling
Weld penetration (Single side)	Aluminum	1.5-2mm	<3mm	<4mm	<=5mm
	Stainless Steel	0.2~2.8mm	<3mm	<4mm	<=6mm
	Carbon Steel	0.2~2.8mm	<3mm	<4mm	<=6mm
	Galvanized Sheet	0.2~2.4mm	<3mm	<4mm	<=6mm
	Brass	<2mm	<2mm	<2mm	<=3mm
	Mild Steel	0.2~2.8mm	<3mm	<4mm	<=6mm
Process Gas		Argon, Nitrogen, Helium, compressed air
Applicable Wire diameter		0.8/1/1.2mm	0.8/1/1.2/1.4/1.6mm
Safety		Class 4 Laser Device Customer responsible for standard ANSI Z136.1 safety precautions. System features include key for laser ON/Off, 2-step laser operation trigger (Enable and Fire), Part-head contact safety circuit, Facility door interlock circuit.

Weld Samples

---
