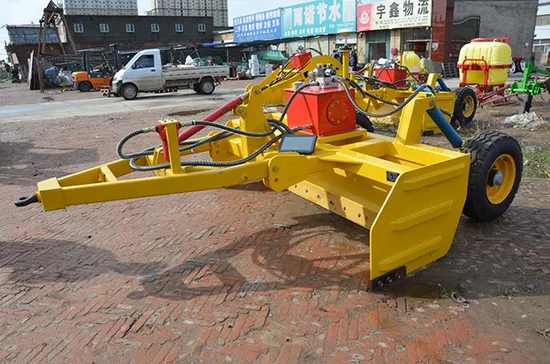

Laser-Guided Tractor-Pulled Land Grader for Agricultural Use

US$3,100.00-3,900.00 1 Piece (MOQ)

Basic Info.

Model NO.
12PW-2.5
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Yellow
Warranty
1 Year
Transport Package
Standard Export
Specification
2.5m
Trademark
soleun
Origin
China
HS Code
843280900

Product Description

2.5-4.5m control of Laser land leveler
This series of laser land leveler is used with 4-wheel farm tractor, can greatly help save water and make the land flatness tolerance below +/-2cm which is much better than ordinary irrigation method.
a. It can be saved water by 20% or more.
b. By precision land leveling operation, can reduce the unnecessary ridge area by 3-5% to make good use of farm land.
c. With increased land flatness, it can help the fertilizer evenly distributed and increase the utilization rate up by around 20%. It will be increased the crop yield by 20-30% with better water irrigation effect and the crop quality at the same time.
d. Crop production cost saving by 5-15%.
Model 12PW-4.0 12PW-3.0A 12PW-2.8/3.5 12PW-2.5/3.2 12PW-2.5 12PW-1.5/2.2
Working Width 4 3 3.5 3.2 2.5 2.2
CONTROL MODE STATELLITE CONTROL STATELLITE CONTROL STATELLITE CONTROL STATELLITE CONTROL STATELLITE CONTROL STATELLITE CONTROL
LEVELLING SHOVEL TYPE CAMBER BEAM ADJUSTABLE CAMBER BEAM FIXED STRAIGHT SHOVEL STRAIGHT SHOVEL STRAIGHT SHOVEL STRAIGHT SHOVEL
TYRE SIZE 10.0/75-15.3 31/15.5-15 10.0/75-15.3 10.5/75-15.3 10.0/75-15.3 23*8.50/12
matched power 154.4-180.5 102.9-154.4 102.9-154.4 102.9-154.4 80.4-102.9 50.4-80.9
working rate ha 0.533333333 0.33 0.4 0.33 0.266666667 0.233333333
Size 4800*2650*1700 4300*3120*1650 4000*2930*1350 4000*2614*1350 4000*2610*1350 2650*1600*1320
weight 2600 1980 1480 1440 1150 1150
