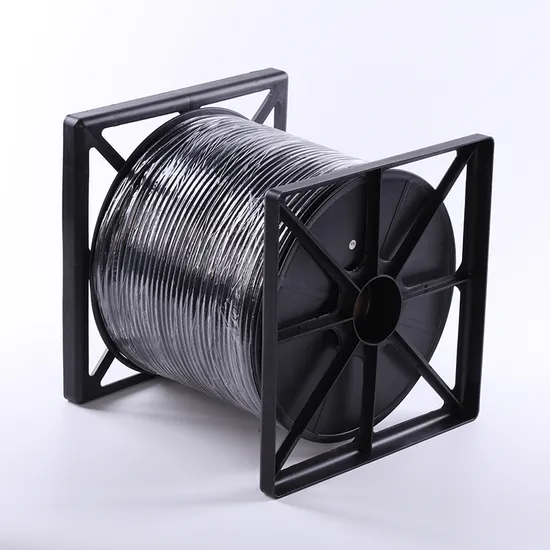

Coaxial Cable of RG6/Rg59/Rg58/Rg11

Product Description

Product DescriptionCATV Coaxial Cable RG6 Standard Shield PE Jacket 34 AWG Aluminum Wire Braiding
F660 RG6 Drop Cable
18AWG CCS
Polyethylene Insulation
Bonded aluminum PET foil
60% braiding coverage
Standard shield
PE or PVC jacket.
Applications:
F660BE cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Product description:
Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 60% braid, PE jacket.
Center conductor:
18 AWG copper clad steel
Nominal diameter: 0.040 inches(1.02mm)
Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 0.180inches (4.57mm)
Shield:
1st shield: laminated aluminum tape bonded to the dielectric.
Nominal diameter over tape: 0.187 inches (4.57mm)
2st shield: 34 AWG aluminum braid wire, 60% coverage.
PE Jacket:
Nominal diameter over jacket: 0.272 inches (6.91mm)
Nominal jacket thickness: 0.030 inches (0.76mm)
Packing:Buyer's labels and cartons OEM/ODM desgin service is available.
Electrical properties:
Impedance : 75±3 ohms
Velocity of propagation: 85% nominal
Attenuation@ 68OF(20oC):

@Frequency MHZ	dB/100ft. (MAX.)	dB/100 meters(MAX.)
5MHZ	0.58	1.90
55MHZ	1.60	5.25
83MHZ	1.95	6.40
187MHZ	2.85	9.35
211MHZ	3.05	10.00
250MHZ	3.30	10.82
300MHZ	3.55	11.64
350MHZ	3.85	12.63
400MHZ	4.15	13.61
450MHZ	4.40	14.43
500MHZ	4.66	15.29
550MHZ	4.90	16.08
600MHZ	5.10	16.73
750MHZ	5.65	18.54
865MHZ	6.10	20.01
1000MHZ	6.55	21.49

Company Profile
Competitive Advantage:
>. Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.Over 18 years of experience on coaxial cable, we have been in business partnership with multi-national cable companies since 1994.Our Advantages
Hot Product
FAQ
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and/or design on goods are available.
Q: May I visit your factory?
A: Sure, welcome any time with prior notice.
Q: Can your company accept customize?
A: Yes, we can produce based on customization requirements practicable for us.
Q: What's your delivery time?
A: Products with stock available will usually be ready for dispatch within one working day since PO confirmed and deposit received; Products to be manufactured takes several days to several months depending the item types and quantity.
Q: How do you solve after sale service?
A: Any after-sales inquiry will be treated within 24 hours once received written notice from client via email, express mail, etc. Your request will meet our active response to furnish satisfying solution for you.
Q: Can you send a sample for us to develop?
A: We can provide samples of mature technical processing line; while special types shall be treated with technical appraisal before confirmation of sample availability. And samples can be provided free of charge or at cost price depending on specific sample type. Fees for transportation of the sample shall be assumed by client.

---
