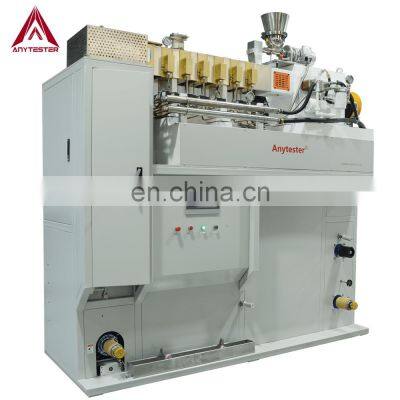

Product DescriptionAT227 Pilot Scale Melt Spinning Machine is a main key equipment in synthetic fibre production. This machine uses high temperature ceramic to heat and melt the polymer sample, and extrude the sample to be liquid trickle from a spinneret under the effect of inert gas pressure, then nascent fibers form under the effect of air cooling. It is specially designed for small batch production test to simulate the field production.Features★ Material Melting and Spinning PartIt consists of extruding part, extrusion measuring head, metering pump, spinning system and cross air-blowing device. 1. Extruding Part * Extruding screw made of high-temperature alloy tool steal with three sections of electric heating, heating power up to 3KW. * It adopts heating rods to heat and copper bush for heat soaking. * Independent temperature controlling and adjusting module for each heating section and adjustable temperature range of from room temperature up to 320℃. * Programmable temperature controller for each section with PID control and auto-turning to keep the temperature accuracy with ±0.5℃. * Driven by frequency-variable motor with power of 2.2KW. * Water-cooling copper coiler at the discharge port to rapid adjust the temperature of the discharge port. 2. Extrusion Measuring Head * Independent pressure sensor and temperature sensor mounted on the extrusion measuring head, real-time monitor the pressure and temperature. * Pressure sensor accurate to 0.1N and temperature sensor accurate to ±5℃. 3. Metering Pump * All of main body of pump, gears and bearings are made of tool steel, high temperature resistant up to 400℃. * Heating power up to 3KW. * Applicable liquids of viscosity ≤ 40000Pas and temperature ≤400℃. * Pump cleaning temperature not more than 450℃. * Input pressure up to 12Mpa. * Maximum pressure difference up to 25Mpa. * Standard flow of 2.4cc/rev. * Driven by frequency-variable gear motor with power of 320W. * Real-time acquisition and display of melt pressure and temperature. * Built-in pressure sensor and temperature sensor in pump. 4. Spinning System * Crystal fiber heating furnace with heating power up to 3KW; * Adjustable temperature range from room temperature to 320℃. * Maximum material filling up to 3L per time. * Three heating sections, rapid heating, high heat efficiency and excellent heat insulation. * Barrel made of 316 stainless steel, thickened wall and uniform material heating. * Barrel adopts full copper bush for heat soaring and uniform heating. * Solid relay to control heating elements, accurate temperature controlling, durable and no noise. 5. Cross Air-blowing Device * Water-cooling fan to blow. * Cool air passes through the halftone of air filter to enter the channel. * Effective blowing area of 150×★ Oiling & Winding Part1. Rotary Oiling Device * PA6 roll with adjustable opening and closing design, convenient to start and stop at any time. * Oiler driven by gear motor with power of 450W with variable speed of 300~1000m/min. * Oil tank made of 304 stainless steel, rust-proof and durable. 2. Hot Rolls * Diameter of 125mm and length of 125mm. * With polishing and chroming surface treatment, hard surface and excellent wear resistance. * Electric induction heating, clean, environment-friendly and low maintenance cost. * Temperature range from 70℃ to 200℃. * Independent variable frequency motor with power of 450W to drive for independent speed adjustment. * Speed range of 100~500m/min. 3.Winding Head * Rubber friction pulley. * Speed range from 300m/min to 1000m/min. * Maximum winding pole size of 120×¢★ Measuring and Controlling Part 1. Data Monitor * Real-time monitoring of material temperature and wall temperature. * Air paths adopts full 304 stainless steel pipes, valves and pressure meter. * Programmable temperature controller, PID automatic temperature control and programmable temperature controlling for three heating sections. * PC remote control and interface display of extruding speed, hot roll speed, winding speed, metering pump speed, temperature and other necessary alarm and signal. 2. Over-limit AlarmWhen over load, system will shut off the electricity. * Over temperature alarm.When over temperature, machine stops heating. * Extruding pressure over-limit alarmWhen extruding pressure beyond the limit, motor stops rotating. * Metering pump rotation speed alarmWhen metering pump rotation speed is away from the set value, auto alarm display.SpecificationModelAT227Melt spinning deviceHeating power of extruding screw3KWExtruding screw diameter¢25mmTemperature rangeRT~320℃Temperature accuracy±0.5℃Pressure sensor accuracy0.1NMelt pump max. temperature400℃Flow of melt pump2.4cc/revSpinneret plate24 holes, hole dia.: 0.1mmOuter diameter: 90mmMaterial: 316L stainless steelMax. Power of crystal fiber furnace3kwMax. Heating temperature of furnace320℃Cross air blow device150×150mmWinding systemSpeed range of oiling roll300~1000m/minHot roll temperature range70~200℃Hot roll diameter125mmHot roll length125mmWinding head speed range300~1000m/minding diameter320mmDrive systemDrive motor of melt pump320WDrive motor of extruding screw2.2KWDrive motor of hot roller450WDrive motor of oiling system450WTemperature controlTemperature control accuracy±0.5℃Melt pressure sensor accuracy0.1NMaterial of gas line304 stainless steelPower supplyAC220V, 50HzPacking & DeliveryPackagingSize(cm)110 (L) * 75 (W) * 180 (H)Weight500 KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Related Products Contacting usLily ChengWebsiteMobile Phone+86 180 5517 3820Whatsapp+86 180 5517 3820Skype1933039910@qq.comWechat+86 180 5517 3820PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most product
>>
