Basic Info.
Certification
CE, ISO9001, SGS
Automatic Grade
Automatic
Application Place
Factory
Applicable Thickness
Middle Thickness Material
Needle Number
Nine Needles
Embroidery Type
Broder Embroidery
Embroidery Area
X400*Y800mm
Transport Package
Wooden Case
Production Capacity
90sets
Product Description
If you need more detailed information and other models, please email us. We will promptly reply to you.
Technical Characteristics:
1. Overall beam structure of track makes it more steady and reduce the vibration.
2. Maximum speed 850spm, servo motor.
3. Automatic thread trimmer, Automatic color change.
4. 5'' high definition LCD display showing real-time stitching.
5. USB port makes the designs more efficient and liable.
6. Auto thread breakage detection through rotation wheel with light sensor.
7. Pre-sew design trace capable.
8. Memory capacity 16, 000, 000 stitches.
9. Personalised design of the Start and Stop button.
10. Internet with computer makes the design transfer more convenient and faster.
11. Module design of the transmission box ensures stable driving and convenient maintenance.
12. Multiple noise reduction developments help create a quiet and pleasant working environment.
13. Multi-languages available, such as Chinese, English, French, Portuguese, Turkish, and so on.

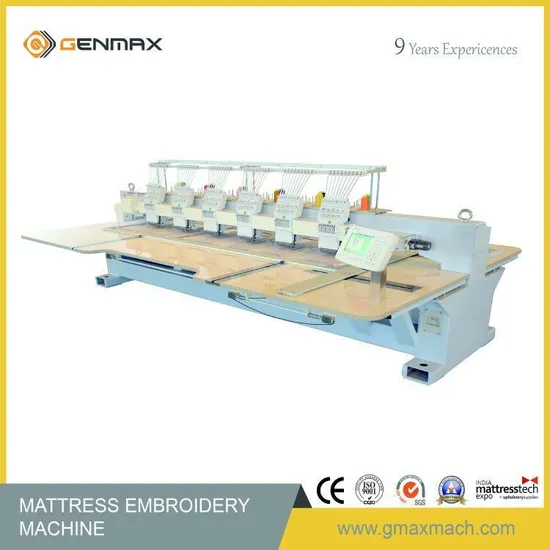

| Model | EM-06 |
| Heads | 6(Adjustable) |
| Needles | 9(Adjustable) |
| Embroidery Area | X400*Y800mm |
| Machine Size | 3300*1860*1670mm(L*W*H) |
| Minimum head distance | 6,160mm, 9,250mm, 12,350mm |
| Maximum Speed | 1000rpm |
| Power Supply | 220V 50Hz/ 3 380V 50Hz |
| Power | 1.6kw |
| Weight | 1500kg |
>>
