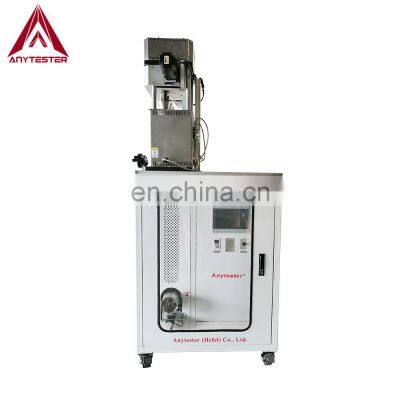

AT226 Series Plunger-type Melt Spinning Machine is used to carry out the melt spinning of polypropylene, polyester, polyamide and other special materials with plunger metering system. The raw material melts and flows into the plunger-type cylinder. The plunger-type cylinder driven by the servo motor can precisely monitor and control the flow of melt liquid. The melt liquid passes through the filtering plate, distributing plate and then is extruded through the spinneret plate to spin. The spun fiber can be direct wound onto the winding roller.
Sketch for Dual-plunger Melt Spinning MachineNOTE: 1-Mixing part, coagulating bath, hot stretching and relaxing heat setting are optional.2-AT226A Single Plunger Melt Spinning Machine has a plunger metering part, but no mixing part while AT226B Dual Plunger Melt Spinning Machine has two plunger metering parts and mixing part.
Specification
Model
| AT226B
| AT226B
|
Number of plunger metering part
| 2
| 2
|
Material-feeding part
|
|
|
Structure
| Screw feeder & driving motor
Adjust screw speed to control feeding amount
|
|
Material
| 316L stainless steel
|
|
Designed capacity of stock bin
| 200ml
|
|
Power of driving motor
| 200W
|
|
Plunger metering part
|
|
|
Structure
| Melting & metering
|
|
Cylinder material of plunger pump
| 306 stainless steel
|
|
Details
1. Material feeding part consists of screw feeder and driving motor. The amount of feeding material is adjustable by adjusting the feeding speed;2. Plunger metering and melting part: material is heated by heating hood to melt and then flows into the plunger-type cylinder. The forward of plunger is driven by the servo motor to precisely control the flow; multi-section temperature controlling, real-time display and control the inner pressure and the temperature of material;
3. Heating hood of cast copper with multi heating sections, rapid to heat and high heat efficiency;
4. Stainless steel winding roll, disassemble-able structure;
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging
|
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Term
|
T/T
| EXW
|
30% T/T in advance, paid the balance before shipment
|
|
| FOB
|
|
|
| CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
| CIF
|
|
| L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
|
| West Union
|
Amount lower than 5000usd
|
|
| West Union
|
|
|
Delivery Time
| 7~10days after receiving payment for one container
|
|
|
