| US$7,199.00-12,999.00 | 1 SET (MOQ) |

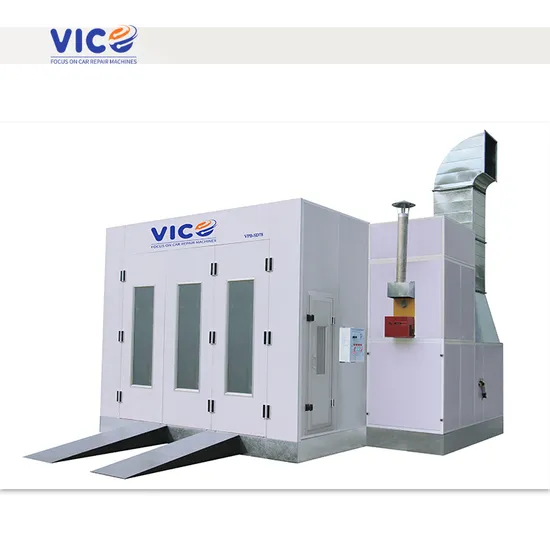

| Painting booth description | One of the hottest sale booths for export, very nice performance and good price |
| Outer dimension:(mm) | 7000*5350*3400mm |
| Inner dimension:(mm) | 6900*3900*2650mm |
| Main door size: | 3000mm(W)*2600mm(H), side small door 700mm*2000mm |
| Appearance color | Red/ Blue / White grey/ Orange |
| Frame system | Frame retardant polystyrene insulation board:50mm thickness, 0.426mm thick steel,galvanized steel assembled roof. Aluminum alloy front door frame and galvanized steel fixed room frame. The floor is assembly formed by corrosion-resistant rectangular tube with 2 rows of grids and 3 rows of checkered plates. Bottom with glass filters. 3 units drive on ramps,each size 750*2000mm(W*L) |
| Air circulation system | 2*4kw double channels centrifugal outer-motor ventilating machines, air flow:25000m3/h, exhaust duct is formed from superior galvanized steel sheet and flange; On load air speed:0.38m/s; Air exchange rate:320 times/h |
| Exhaust | 1*5.5 KW centrifugal fan, model YDW 5.5KW, blower capacity 15000 m3/h. |
| Filter system | High-efficiency imported glue-spreading cotton (VF-600) ceiling filter Basement bottom grills bottom with glass filters system. |
| Heating system | RIELLO G20 burner, Max. Calorific value:180,000kcal/h. Exchanger Argon arc welded SUS304 stainless steel Max. Temperature :80ºC; Diesel consumption 5-8L/h; Temperature rise rate:5-8min(20-60ºC); |
| Lighting system | Ceiling with two lines of lighting box, each line 4 units. total with 24pcs of 36w LED lamps. Illuminance:800Lux Side lights:8 groups*2 pc=16 pcs 36W LED lights. |
| E-controlling system | Adopt superior electronic components, main circuit has multi-protection. Function:Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, pressure gauge, all motors reduced-voltage starting. |
| Total power | 16KW |
| Electric power supply | 3PH, 220V/380V/415V, 50Hz/60Hz |
