Two Roll Silicone Rubber Milling Open Mixing Mill Machine

Product Description

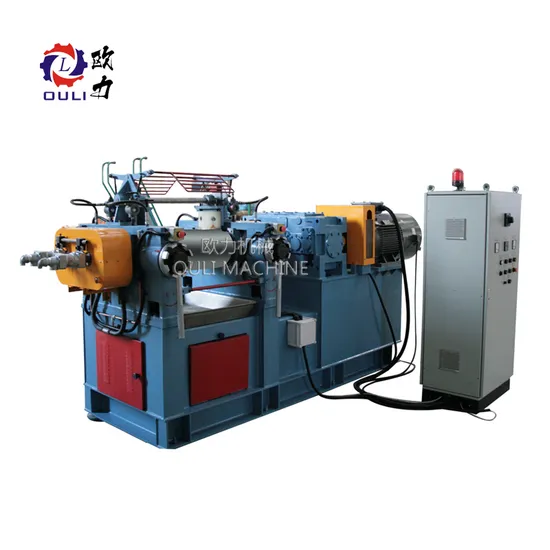

TWO ROLL SILICONE RUBBER MILLING OPEN MIXING MILL MACHINE
1.Rubber mixing mill/Open mixing mill /two roll mill (QINGDAO OULI MACHINE CO.,LTD)
2.Rubber mixing mill/Open mixing mill /two roll mill PARAMETERS (QINGDAO OULI MACHINE CO.,LTD)
1-1. Basic introduction of High Quality Rubber Made In China Open Mixing Mill Machine.
Rubber mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A.with chemicals into final materials.
The final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products. 2-2. parameters of rubber mixing mill

Parameter/model		XK-160	XK-250	XK-300	XK-360	XK-400
Roll diameter(mm)		160	250	300	360	400
Roll working length (mm)		320	620	750	900	1000
Capacity (kg/batch)		4	15	20	30	40
Front roll speed (m/min)		10	16.96	15.73	16.22	18.78
Roll speed ratio		1:1.21	1:1.08	1:1.17	1:1.22	1:1.17
Motor power (KW)		7.5	18.5	22	37	45
Size (mm)	Length	1104	3230	4000	4140	4578
	Width	678	1166	1600	1574	1755
	Height	1258	1590	1800	1800	1805
Weight (KG)		1000	3150	5000	6892	8000

Parameter/model		XK-450	XK-560	XK-610	XK-660	XK-710
Roll diameter(mm)		450	560/510	610	660	710
Roll working length (mm)		1200	1530	2000	2130	2200
Capacity (kg/batch)		55	90	120-150	165	150-200
Front roll speed (m/min)		21.1	25.8	28.4	29.8	31.9
Roll speed ratio		1:1.17	1:1.17	1:1.18	1:1.09	1:1.15
Motor power (KW)		55	90/110	160	250	285
Size (mm)	Length	5035	7100	7240	7300	8246
	Width	1808	2438	3872	3900	3556
	Height	1835	1600	1840	1840	2270
Weight (KG)		12000	20000	44000	47000	51000

2-3. Configuration for High Quality Rubber Made In China Open Mixing Mill Machine.
1. Rolls: Chilled Alloy Cast Iron rolls with surface hardness 68~72HS. The Rolls are mirror finished & polished,
duly grinded and are hollowed for cooling or heating.
2. Roll Clearance Adjusting Unit: Nip adjustment at two roller ends is done manually using two separate screws
attached to the brass housing body.
3. Roll Cooling: Universal Rotary joints with inner Spray pipes with Hoses and Headers. Piping is complete up
to supply pipe terminal.
4. Journal Bearing Housing: Heavy Duty Steel Casting Housing fitted with Anti Friction Roller Bearings.
5. Lubrication: Full Automatic Grease lubrication pump for Anti Friction Roller Bearings fitted in dust sealed housing.

6. Stand Frame & Apron: Heavy Duty Steel Casting.
7. Gearbox: Hard-tooth reduction gearbox, GuoMao brand.
8. Base Frame: Common base frame heavy duty, Steel channel and MS plate fabricated accurately machined
on which whole machine with Gearbox and motor are fitted.
9. Electric Panel: Star Delta Electric operating panel with Auto Reversing, Voltmeter, Ampere,
verload protection relay, 3 Phase Indicator and Emergency Stop Switch.
3.MORE PRODUCT OF (QINGDAO OULI MACHINE CO.,LTD)
3.1.rubber kneader 20L/35L/55L/75L/110L/150L
3.2 rubber mixing mill XK160/200/250/300/360/400/450/560/610/660
3.3 rubber calender (two roller rubber calender /three rollers calender /four rollers rubber calender)
3.4 rubber press:we can produce all hot plate size of rubber press.
4.COMANY INFROMATION (QINGDAO OULI MACHINE CO.,LTD)
2-1 OULI COMPANY Established in 1997 , Qingdao Ouli machine CO., LTD was located in Huangdao District, the west coast of Qingdao city,Shandong province ,China.
Branches in Suzhou , Dalian etc were created in 2012 and 2015 . We are specialized in rubber machinery designing,manufacturing and maintenance works OULI main products: Rubber mixing equipment / Rubber vulcanizing machine / Automatic and semi-automatic waste tire recycling equipment / Rubber calendaring machine / Rubber extruding equipment / Reclaimed rubber production line Our machines have been exported to more than 20 countries such as America, Canada, Australia, Southeast Asia, Middle East,Brazil . We warmly welcome customers visit factory and technology discussion is highly appreciated .
2-2 OULI WORK SHOP
2-3 OULI CUSTOMER PHOTOS
5 .Shipment (QINGDAO OULI MACHINE CO.,LTD)
6 .Certificate (QINGDAO OULI MACHINE CO.,LTD)

---
