Custom Galvanized Steel Sheep Goat Lambing Continuous Feeding Tank 150 Kg

Product Description

Custom Galvanized Steel Sheep Goat Lambing Continuous feeding tank 150 Kg

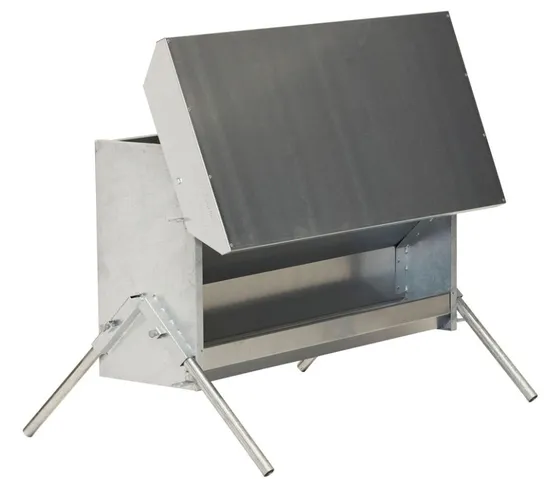

The continuous feeding tank is used for feeding pellets and supplements for lambs. To be placed either inside the pen or out in the open. The lambs can feed 24 hours a day. Easy cleaning for optimal hygiene. Fodder stays dry and fresh. When the feeding tank is constantly full it has a capacity for ± 50 lambs Sizes: L x W x H = 1,25 x 0,60 x 0,85 m
custom galvanized steel sheep goat lambing Creep feeder L = 2.45 m with safety hurdle
For feeding the lambs. The feeding slots are adjustable to accomidate different head sizes of lambs. Adult sheep cannot get access to feed. With safety hurdle the lambs can always come out of the creep feeder. Feedig on both sides allowing 12 slots. Approx. 75 KGs storage. When the creepfeeder is constantly full it has capacity for ± 75 lambs. Two wide wheels for easy handling. Wheel, handle and roof must assemble by yourself. Maximum opening bars 17 cm. H = 0,58 m, B = 0,60 m

FTWHRA15	1,25 m	H: 0,58 m W: 0,60 m	49,0 kg
FTWHRA16	2,45 m	H: 0,58 m W: 0,60 m	75,0 kg

Custom Galvanized Steel English goat Sheep hay rack L = 1,25 m with 4 wheels

FTWHRA13	1.25m	H: 0,70 m W: 0,60 m	49kg
FTWHRA14	2.45m	H: 0,70 m W: 0,60 m	75,0 kg

Custom Galvanized Steel Hay rack with roof and trough L = 2.40 m on 4 legs

FTWHRA07	1.20 m	H 1.1m W: 0,50 m	49.1kg
FTWHRA08	2.4m	H 1.1m W: 0,50 m	67.1kg

Custom Galvanized Steel Hay rack L = 1,20 m on 4 legs

FTWHRA05	1.20 m	H 1.1m W: 0,50 m	31kg
FTWHRA06	2.4m	H 1.1m W: 0,50 m	34.7kg

Custom Galvanized Steel Half hay rack to attach on a wall with trough
L: 0,60 m - H: 0,50 m - W: 0,17 m 4,1 kg
Custom Galvanized Steel Wall hay rack L = 1,20 m with trough
L: 1,20 m - H: 0,70 m - W: 0,30 m 16,5 kg
Custom Galvanized Steel Hanging hay rack with trough 1.20 m
L: 1,20 m - H: 0,70 m - W: 0,30 m 19.3 kg
Custom Hot Dipped Galvanized Steel Sheep Mounted flatpack hay rack
L x B x H = 0,55 x 0,46 x 0,58 m No wastage of hay. Mesh sizes: 75 mm x 50 mm. Hangs on hurdle so sheep can eat from both sides. Easy installation on top of existing Veno hurdles. Maximum hurdle width is 30 mm. Specially designed for 1,00 meter high hurdles.
mounted hay rack with wiring mesh

FTB HR01	0.5	0.45	75.*55mm	3,5 kg
FTB HR02	0.6	0.45	75.*55mm	4,4 kg

Custom Galvanized Steel Lambing hurdle with mesh wiring Ideal hurdle for sheep with lambs. Lambs are kept free from draft. The 40 cm-high synthetic casing prevents sheep from interacting with neighbouring pens. Easily put togther by locking pins, wall fastening and gimlets. Synthetic casing makes it easy to clean and reduce chances of disease.

FTDMH01	0,85	1,23 m	6.7kg
FTDMH02	0,85 m	1,50 m	8.8kg
FTDMH03	1 m	1,23 m	7.9kg
FTDMH04	1 m	1,50 m	10.2kg

Custom Galvanized Steel Lambing hurdle with synthetic sheet

FDWHS01	0,85	1,23 m	10,9 kg
FDWHS02	0,85 m	1,50 m	12,5 kg
FDWHS03	0,85 m	2m	14.9kg
FDWHS04	1 m	1,23 m	12,7 kg
FDWHS05	1 m	1,50 m	14.6kg

The size can be made according customers' requirement.

Framework	7 Horizontal Rails
Side uprights	25mm x 25mm x 1..5mm square section	2pcs
Top Rail& Bottom Rail	22Φx1mm round section	2pcs
Infill rails	21Φx1mm round section	5pcs
Hurdle loop	25 x4mm Flat	2pcs
Brage	25 x3mm Flat	1pcs
Fixings	interlocking up and over mechanism	2pcs
	Plastic end caps = 2 per panel
Finish	Hot dipped zinc galvanised after fabrication to EU. Standards
Height	3ft to top rail
Widths	1.22m (4ft) 1.84m (6ft)
Package	Bundle with plastics strapping, on wood pallet.

1.Fencing Characteristics:
Durable, easy to installation, easy to moved, easy to transportation. Won't break down or collapse when cattle, pigs, sheep or other large livestock run into or rub against it.Welded one piece steel construction,virtually maintenance free,sag resistant,easy to erect, no stretching

2. Fencing Application:
Great for round pens, arenas, paddocks, overnite shows, trail rides and stalls. Designed for your horse safety with rounded corners (no sharp edges).


3.Fencing Advantages:

1.Our livestock cattle panel meets high standard, and is very popular in the market

2.the panel are inter-locking, very sturdy and easy install, no need to dig holes or lay foundations

3.the metal rails are hot dip galvanized before welding, thus has strong capability of anticorrosive.
4.Fencing detailes.

Sheep Hurdle 1 (F-001-0001)
Framework	90cm x 150cm, 8 Horizontal Rails
Side uprights	35mm x 35mm x 2mm square section 2pcs/panel
Top Rail& Bottom Rail	28Φx1.5mm round section 2pcs/panel
Infill rails	22Φx1.5mm round section 6pcs/panel
Pin holes	30mm x 50mm x 5mm Flat
	(hole 16mmx30mm)
Center strip	20mm x 4mm Flat 1pcs/panel
Plastic end caps	2 per panel 2pcs/panel
Finish	Hot dipped zinc galvanized after fabrication to EU. Standards
Height	90cm to top of top rail

---
